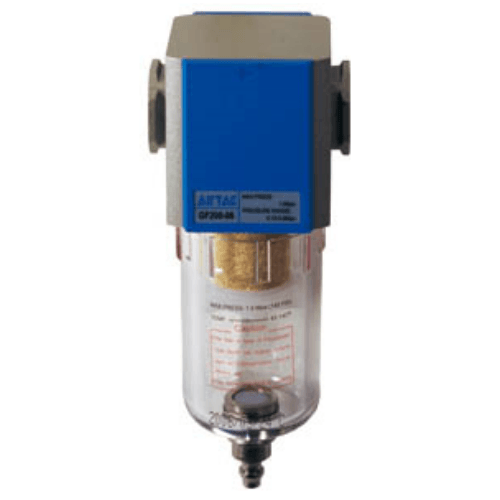

Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW
The AirTAC Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW is a genuine G-series air filter. It separates condensed water and filters particulate from the compressed-air line through a 5 µm element, with PT1" ports and a differential-pressure drain. A filter does not set downstream pressure — pair it with a GR regulator, or use a GFR filter regulator, when pressure control is needed.
- TypeAir filter
- Port sizePT1"
- Filtering grade5 µm
- DrainDifferential-pressure drain
- Inlet pressure0.15 - 1.0 MPa (22 - 145 psi)
- Bowl materialAluminium alloy
- ThreadPT
- BracketSupplied without bracket
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW
The AirTAC GF600 series is a compressed-air filter: it removes water and particulate from the air line. It does not regulate pressure and does not lubricate. This GF60025JW is the large 600 frame with a 1" PT (BSPT-type) port, fitted with the fine 5 um element (W) for cleaner air and the default differential-pressure drain. The J suffix means no mounting bracket is supplied - the unit is mounted on your own panel or manifold. The bowl on 600-size filters is aluminium alloy.
This is a genuine AirTAC part. Max working pressure is 1.0 MPa (145 psi), operating temperature range is -5 to 70 C (non-freezing), and the medium is compressed air only. The same 600 frame is available with the standard 40 um element and automatic (A) or manual (M) drains, and the family spans 200, 300 and 400 sizes with G (BSPP) and NPT thread options. Flow is published as curves, not a single rating, so we confirm datasheet figures on request.
Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW Technical Specifications
| Model | Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW |
|---|---|
| Series | GF600 air filter |
| Port size | PT1" (PT thread) |
| Filtering grade | 5 µm |
| Drain type | Differential-pressure drain |
| Bracket | Supplied without bracket |
| Fluid | Compressed air |
|---|---|
| Inlet pressure | 0.15 - 1.0 MPa (22 - 145 psi) |
| Max. working pressure | 1.0 MPa (145 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Bowl material | Aluminium alloy |
| Feature | Low pressure loss |
Specifications follow the official AirTAC G-series air-preparation data. The inlet-pressure band is set by the drain type: automatic and differential-pressure drains run 0.15 - 1.0 MPa, a manual drain runs 0 - 0.9 MPa. Air must not freeze in the unit. Flow curves, weight and outline dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW
| GF600 | G-series air filter, 600 body — sets the port range. |
|---|---|
| 25 | Port size PT1". This body offers 20 = PT3/4", 25 = PT1". |
| (blank) | Drain: Differential-pressure drain. Options are differential (blank), automatic (A) or manual (M). |
| J | Supplied without bracket. A bracket ships by default; J orders it without. |
| W | Filtering grade 5 µm. Only 40 µm (blank) and 5 µm (W) exist. |
| (blank) | PT thread. PT is the default; G is BSPP and T is NPT. |
Field order is size, port, drain, bracket, grade, thread — a blank position takes the default. Example: GF300-10AJW is a 300 body, PT3/8", automatic drain, no bracket, 5 µm element, PT thread.
Size Class
- GF200PT1/8" - PT1/4"
- GF300PT1/4" - PT1/2"
- GF400PT3/8" - PT1/2"
- GF600PT3/4" - PT1"
A larger body carries a larger port and passes more air at the same pressure drop. AirTAC publishes flow only as curves, so size the body from your peak demand with headroom rather than from a single rated figure. The GF600 uses an aluminium-alloy bowl; the 200, 300 and 400 bodies use PC.
| This model | GF600 · PT1" · 5 µm |
|---|---|
| One size down | GF400 |
| Line order | Filter first, then regulator, then lubricator |
Where the Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW Is Used
Laboratory analyser air supply
Fitted on the 1" plant-air branch feeding a water-quality analyser shelter, the 5 um element keeps fine particulate out of the sample-handling pneumatics and reference-air circuits used by the analysers.
Food tray-sealing machine line
Installed upstream of a multi-station tray-sealing machine's valve bank, the filter removes water and fine dirt from the 1" supply so the sealing cylinders and vacuum ejectors receive clean air during high-cycle packaging runs.
Diaphragm valve header on treatment skid
Mounted on the air header actuating a bank of diaphragm valves on a filtration skid, the unit supplies clean, dry-enough air to the actuator manifold, with the differential-pressure drain shedding condensate as flow demand rises.
Is the Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW the Right Filter?
This is the large 600 frame with 1" PT port for high-demand lines - for 1/4" to 3/4" circuits, step down to the 200-400 sizes. Flow is published as curves rather than a single rating, so ask us to confirm sizing before ordering. The W suffix selects the 5 um element instead of the 40 um standard: choose it when finer particulate removal protects sensitive valves, cylinders or process instruments, accepting that fine elements load faster. The drain is the default differential-pressure type; the A (automatic) and M (manual) suffix versions suit unattended or scheduled draining instead. Thread is PT as standard, with G (BSPP) and NPT available to order. The J suffix omits the bracket - use the blank-suffix version if you want one supplied.
Quick checklist
- ✓ Body size for your peak flow (PT1" here)
- ✓ Element 40 µm or 5 µm
- ✓ Drain: differential, automatic or manual
- ✓ Manual drain caps inlet at 0.9 MPa
- ✓ Thread PT, G (BSPP) or NPT
- ✓ Bracket needed, or order with J
Installation & Maintenance Notes
- check Mount vertically, bowl down, and follow the airflow arrow.
- check Put the filter first in the air-preparation line.
- check Keep inlet pressure within 0.15 - 1.0 MPa (22 - 145 psi).
- check Drain condensate before the bowl fills.
- check Keep the unit above freezing (-5 to +70 °C, unfreeze).
- check Replace the 5 µm element when pressure loss rises.
The aluminium-alloy bowl on the GF600 suits harsher environments than a PC bowl. A filter removes water and particulate only; it does not regulate pressure or add lubrication.
Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF60025JW FAQ
AirTAC publishes GF-series flow as performance curves rather than one rated figure, and the 5 um element sits on the same curve set as the standard element. We do not state a fixed l/min or SCFM value here - share your application details and we will confirm the datasheet curves and sizing on request.
The W suffix in GF60025JW selects the 5 um element, which removes finer particulate than the 40 um standard - a better match for sensitive valves, instruments and process equipment. The trade-off is that a finer element clogs sooner in dirty air, so drain choice and element checks matter. Automatic-drain (A) and manual-drain (M) versions of the same 600/1" frame are available, with or without bracket.
