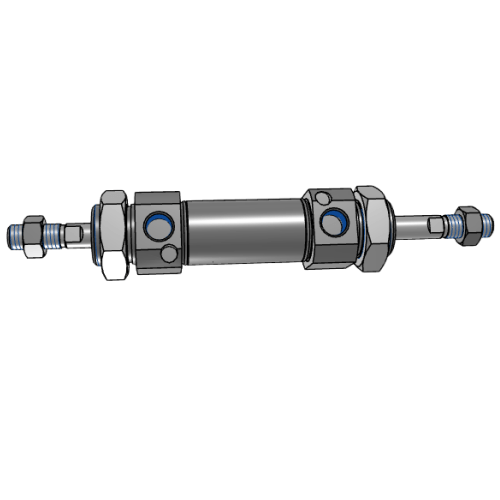

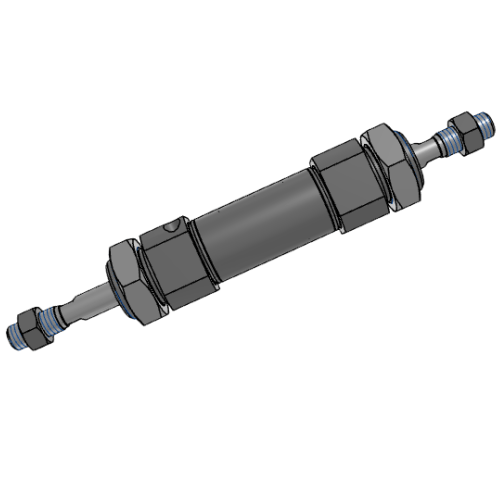

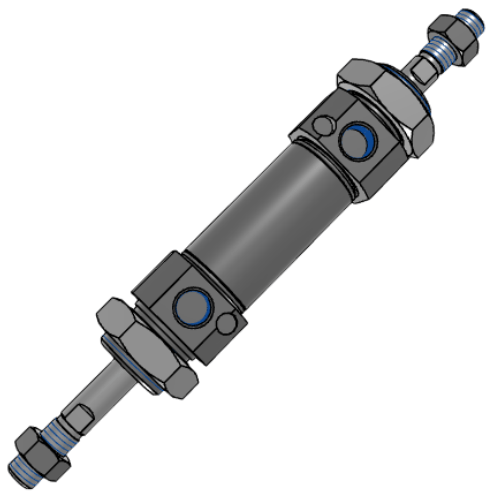

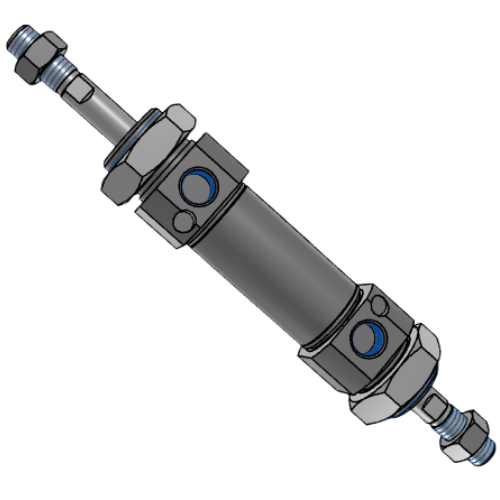

Airtac MFCD Double Rod Cushioned Mini Cylinder MFCD40X125S
$85.57
Regular price
$93.07
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MFCD40X125S
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compliant with JIS standards;
2. Piston sealed with specialized bidirectional sealing structure, compact design with integrated lubrication reservoir;
3. Front/rear covers feature fixed shock-absorbing pads to minimize directional change impacts;
4. Multiple rear cover configurations for enhanced mounting flexibility;
5. Crimped and wrapped connection between covers and stainless steel cylinder ensures robust assembly;
6. High-precision stainless steel barrel offers superior strength and corrosion resistance;
7. MF series maintains shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Comprehensive selection of cylinder variants and mounting accessories available.
Category: Double-Rod Cylinders | Brand: AIRTAC | Series: MFCD
Installation recommendation:
Maintain 0.5mm minimum clearance between rods during parallel installation.
Use flexible couplings to compensate for minor misalignments.
Cushion adjustment requires 10-15 operation cycles for optimal setting.
2. Piston sealed with specialized bidirectional sealing structure, compact design with integrated lubrication reservoir;
3. Front/rear covers feature fixed shock-absorbing pads to minimize directional change impacts;
4. Multiple rear cover configurations for enhanced mounting flexibility;
5. Crimped and wrapped connection between covers and stainless steel cylinder ensures robust assembly;
6. High-precision stainless steel barrel offers superior strength and corrosion resistance;
7. MF series maintains shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Comprehensive selection of cylinder variants and mounting accessories available.
Category: Double-Rod Cylinders | Brand: AIRTAC | Series: MFCD
AirTAC MFCD Series Double Rod Mini Cylinder with Cushion - MFCD40X125S
- Model: MFCD40X125S
- Bore size: 40mm
- Stroke: 125mm
- Action type: Double-acting with adjustable air cushion (both ends)
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -20℃ to 80℃
- Port size: M5×0.8 (standard) / NPT1/8 (optional)
- Piston speed: 50–700 mm/s (cushion adjusted)
- Mounting type: Basic type (no foot) with axial mounting holes
- Rod material: Hard chrome-plated carbon steel
- Cylinder tube: Aluminum alloy (anodized surface)
- Seal material: NBR (standard) / PU (optional)
- Weight: 1.45 kg (with rods)
- Dimensions:
- Body length: 208mm (excluding rods)
- Width: 50mm (mounting surface)
- Height: 54mm (including cushion nuts)
- Rod diameter: 12mm (both sides)
- Stroke tolerance: ±0.6mm
- Protection rating: IP54 (standard) / IP67 (with optional wiper)
- Lubrication: Pre-lubricated (oil-free operation possible)
A space-saving dual-rod cylinder featuring precision cushioning adjustment screws at both ends for smooth deceleration. The symmetrical rod design eliminates lateral force during operation, making it ideal for precision alignment applications. Optional magnetic piston version (MFCD40X125S-M9) available for position sensing.
Typical Applications:
- High-speed pick-and-place systems requiring mirrored movements
- Precision glass panel handling equipment
- Pharmaceutical tablet pressing mechanisms
- Automated test probe positioning
- Semiconductor wafer transfer systems
- Parallel gripper actuation in robotics
Installation recommendation:
Maintain 0.5mm minimum clearance between rods during parallel installation.
Use flexible couplings to compensate for minor misalignments.
Cushion adjustment requires 10-15 operation cycles for optimal setting.
| Property | Property Value |
|---|---|
| sku | MFCD40X125S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Cushion Type | Adjustable Cushioning |
| Bore Diameter | <40mm> |
| Stroke | 125mm |
