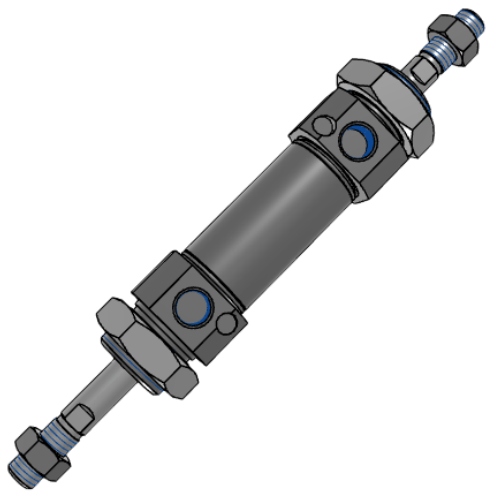

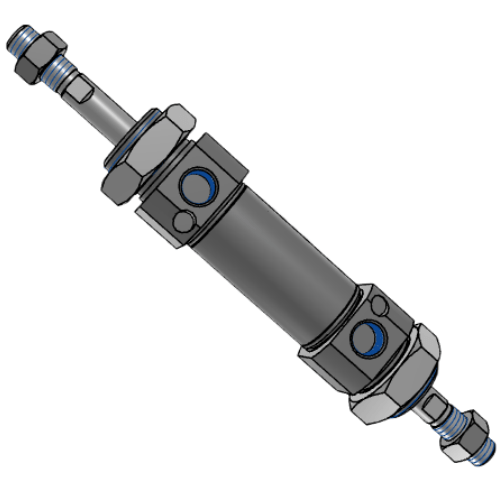

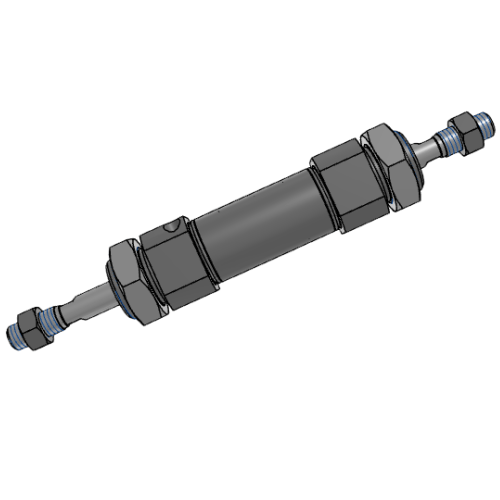

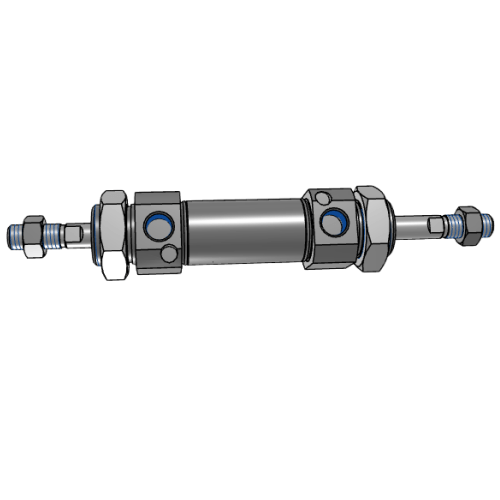

Airtac MFCD Double Rod Cushioned Mini Cylinder MFCD40X150
2. Piston sealed with specialized bidirectional sealing structure, compact design with integrated lubrication reservoir;
3. Front/rear covers feature fixed shock-absorbing pads to minimize directional change impacts;
4. Multiple rear cover configurations for enhanced mounting flexibility;
5. Crimped and wrapped connection between covers and stainless steel cylinder ensures robust assembly;
6. High-precision stainless steel barrel offers superior strength and corrosion resistance;
7. MF series maintains shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Comprehensive selection of cylinder variants and mounting accessories available.
Category: Double-Rod Cylinders | Brand: AIRTAC | Series: MFCD
AirTAC MFCD40X150 Double Rod Cushioned Mini Cylinder Specifications
- Model: MFCD40X150
- Type: Double rod compact cylinder with adjustable cushioning
- Bore size: 40mm
- Stroke: 150mm
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Cushion type: Rubber buffer (adjustable at both ends)
- Port size: PT1/8 (M5 optional)
- Piston rod thread: M10×1.25
- Mounting style: Basic type (optional side/axial mounting brackets)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Seal material: NBR (Nitrile rubber) standard
- Protection rating: IP65 (dust-tight & water jet resistant)
- Max speed: 500–800 mm/s (cushion dependent)
- Weight: 1.2 kg ±3% (excluding accessories)
- Dimensions: 200mm(L) × 80mm(W) × 80mm(H) (stroke-included length)
High-precision dual-rod cylinder featuring twin cushioning chambers for smooth stroke termination. The anodized aluminum construction provides corrosion resistance in humid environments. Unique through-rod design allows simultaneous force application in both directions, with integrated magnetic slot for sensor compatibility.
- Precision clamping in CNC tool changers
- Vertical lifting mechanisms in food packaging lines
- Positional locking in semiconductor handling robots
- Bidirectional actuation in automated test equipment
- Material transfer gates in cleanroom environments
Installation note:
Lubricate with ISO VG32 hydraulic oil before operation. Avoid side load exceeding 10N.
For vertical mounting, use mechanical locks to prevent piston drift. Max operating pressure
fluctuation should stay within ±10% of set value.
| Property | Property Value |
|---|---|
| sku | MFCD40X150 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Cushion Type | Adjustable Cushioning |
| Bore Diameter | <40mm> |
| Stroke | 150mm |
