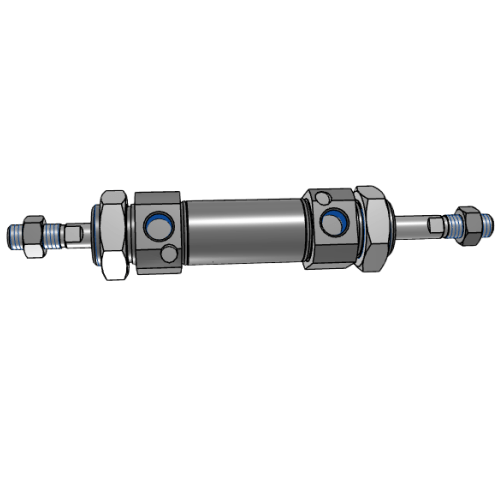

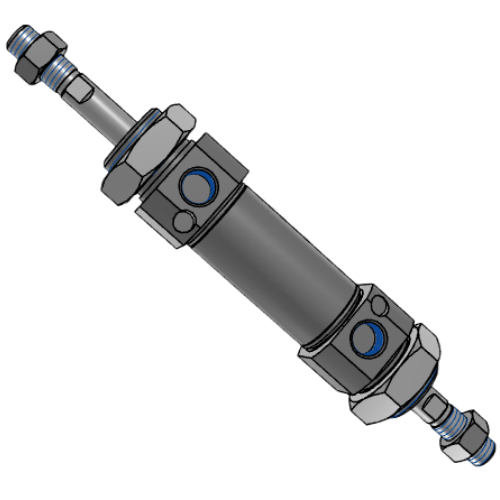

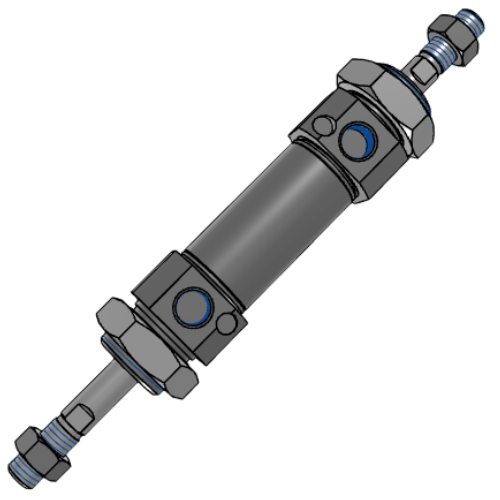

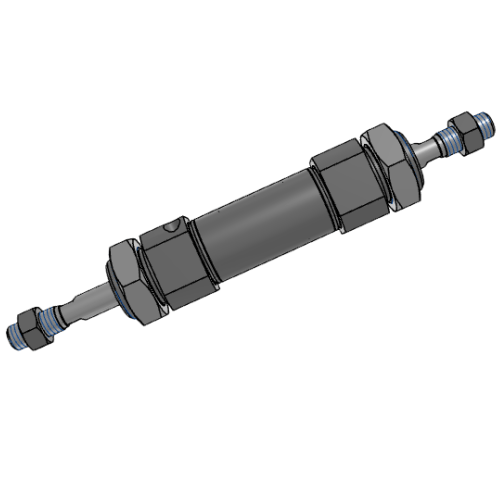

Airtac MFCD Double Rod Cushioned Mini Cylinder MFCD40X300
$111.42
Regular price
$118.92
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MFCD40X300
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compliant with JIS standards;
2. Piston sealed with specialized bidirectional sealing structure, compact design with integrated lubrication reservoir;
3. Front/rear covers feature fixed shock-absorbing pads to minimize directional change impacts;
4. Multiple rear cover configurations for enhanced mounting flexibility;
5. Crimped and wrapped connection between covers and stainless steel cylinder ensures robust assembly;
6. High-precision stainless steel barrel offers superior strength and corrosion resistance;
7. MF series maintains shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Comprehensive selection of cylinder variants and mounting accessories available.
Category: Double-Rod Cylinders | Brand: AIRTAC | Series: MFCD
Installation tip:
Maintain 0.5-1mm clearance between rods during parallel installation.
Use rod-end bearings for angular misalignment compensation. Cushion adjustment
requires 2mm hex key (included). Maximum side load: 15N at rod end.
2. Piston sealed with specialized bidirectional sealing structure, compact design with integrated lubrication reservoir;
3. Front/rear covers feature fixed shock-absorbing pads to minimize directional change impacts;
4. Multiple rear cover configurations for enhanced mounting flexibility;
5. Crimped and wrapped connection between covers and stainless steel cylinder ensures robust assembly;
6. High-precision stainless steel barrel offers superior strength and corrosion resistance;
7. MF series maintains shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Comprehensive selection of cylinder variants and mounting accessories available.
Category: Double-Rod Cylinders | Brand: AIRTAC | Series: MFCD
AirTAC MFCD40X300 Double Rod Cushioned Mini Cylinder Specifications
- Model: MFCD40X300
- Bore diameter: 40mm
- Stroke: 300mm
- Operation pressure: 0.05–0.9 MPa
- Cushion type: Adjustable air cushion (both ends)
- Port size: M5x0.8 (standard) / NPT1/8 (optional)
- Mounting type: Basic type (no built-in mounting)
- Piston rod material: Hard chrome-plated steel
- Cylinder tube: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃
- Weight: 2.35kg ±5% (including rod)
- Dimensions:
- Body length: 348mm (excluding rods)
- Total extended length: 348 + (2×300) = 948mm
- Width: 53mm (mounting face)
- Height: 53mm (square body profile)
- Rod thread: M10x1.25 (both ends)
- Lubrication: Pre-lubricated (oil-free operation possible)
- ISO standard: 6431 (NFPA interchangeable)
Compact dual-rod cylinder with precision-adjustable pneumatic cushions, designed for bidirectional force applications requiring precise stroke control. Features anti-rotation design with square body profile and dual hardened piston rods. Optimal for medium-load push-pull operations in confined spaces.
Typical Applications:
- PCB board clamping/fixturing systems
- Textile machinery thread tension control
- Automated packaging line diverters
- Semiconductor wafer handling robots
- Medical device assembly stations
Installation tip:
Maintain 0.5-1mm clearance between rods during parallel installation.
Use rod-end bearings for angular misalignment compensation. Cushion adjustment
requires 2mm hex key (included). Maximum side load: 15N at rod end.
| Property | Property Value |
|---|---|
| sku | MFCD40X300 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Cushion Type | Adjustable Cushioning |
| Bore Diameter | <40mm> |
| Stroke | 300mm |
