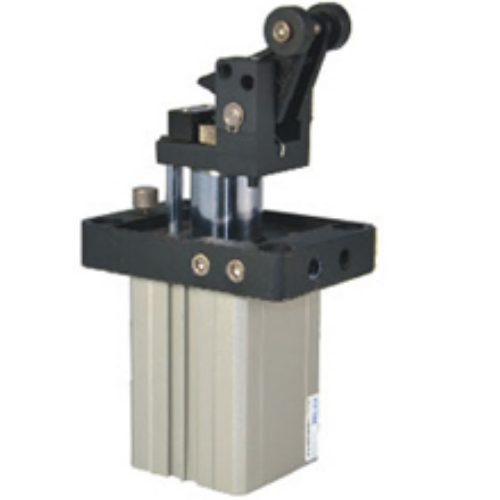

Airtac TTM Stopper Cylinder TTM50X30K
2. Reinforced piston rod design significantly enhances cylinder impact resistance;
3. Heavy-duty stopper cylinders integrate hydraulic cushioning or adjustable oil cushioning systems for reliable energy absorption during impact;
4. Lever-roller type stopper cylinders feature a self-locking mechanism to prevent arm rebound and unintended pushing of blocked objects;
5. Multiple series and specifications available for flexible application requirements.
Category: Stopper Cylinders | Brand: AIRTAC | Series: TTM
AirTAC TTM50X30K Stopper Cylinder Technical Details
- Model: TTM50X30K
- Type: Compact double-acting stopping cylinder
- Bore size: 50mm (±0.1mm tolerance)
- Stroke: 30mm (fixed)
- Operating pressure: 0.1-0.8 MPa
- Temperature range: -20℃ to 80℃
- Port size: G1/8 (ISO standard)
- Buffer type: Fixed cushioning (rubber shock absorber)
- Seal material: NBR (Nitrile rubber)
- Piston rod material: SUS304 stainless steel
- Cylinder tube: Anodized aluminum alloy
- Mounting options: Side-mount (standard), front flange, rear pivot
- Repeat positioning accuracy: ±0.5mm
- Weight: 2.5kg (without accessories)
- Dimensions: 150mm(L) × 50mm(W) × 50mm(H)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Sensor compatibility: Built-in magnet for proximity switches
High-impact stopper cylinder designed for precision workpiece positioning in automated systems. Features chromium-plated piston rod for wear resistance and anti-corrosion treatment on external surfaces. The T-shaped impact block provides 360° adjustable contact surface with replaceable polyurethane pads (optional). Requires 40μm filtered air supply with ISO VG32 hydraulic oil mist lubrication.
- Conveyor line part positioning in automotive assembly
- PCB board clamping in electronics manufacturing
- Pallet stop mechanisms in logistics sorting systems
- Press machine safety interlocks
- Glass panel alignment in solar module production
Operational guidance:
Maintain 0.3-0.6 MPa optimal pressure for impact force control.
Lubricate every 500,000 cycles using AirTAC P-1 lubricator.
Allow 20mm clearance behind stopper for impact absorption.
| Property | Property Value |
|---|---|
| sku | TTM50X30K |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | Non-magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Non Self-locking |
| Stroke | 30mm |
