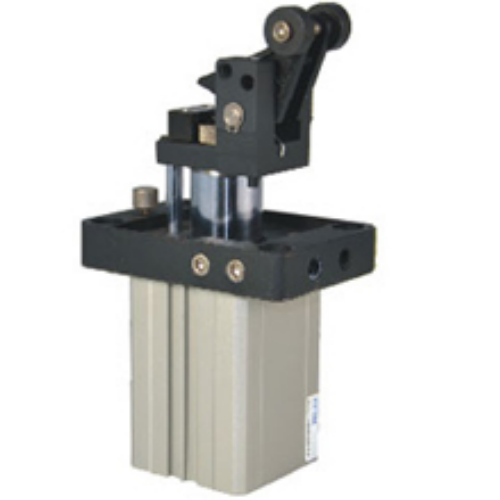

Airtac TTM Stopper Cylinder TTM50X30KF
2. Reinforced piston rod design significantly enhances cylinder impact resistance;
3. Heavy-duty stopper cylinders integrate hydraulic cushioning or adjustable oil cushioning systems for reliable energy absorption during impact;
4. Lever-roller type stopper cylinders feature a self-locking mechanism to prevent arm rebound and unintended pushing of blocked objects;
5. Multiple series and specifications available for flexible application requirements.
Category: Stopper Cylinders | Brand: AIRTAC | Series: TTM
AirTAC TTM Series Stopper Cylinder TTM50X30KF Technical Details
- Model: TTM50X30KF
- Type: Double-acting compact stopper cylinder
- Bore size: 50mm
- Stroke: 30mm (±1mm tolerance)
- Operating pressure: 0.15–0.8 MPa
- Cushioning: Adjustable rubber buffer
- Mounting style: KF series front flange
- Port size: G1/8 (Rc1/8 optional)
- Operating temperature: -20℃ to 80℃
- Material: Aluminum alloy body (anodized), CRCA piston rod
- Seal type: NBR rubber (FDA compliant option available)
- Weight: 1.8kg ±2%
- Dimensions: 178mm(L) × 50mm(Bore diameter) × 62mm(Height with mounting flange)
- Rod thread: M10×1.25 external thread
- Repeat positioning accuracy: ±0.2mm
- Max thrust: 157N @0.5MPa
- ISO standard: 6432 compliant
High-precision mechanical stopper cylinder with integrated shock absorption, featuring dual anti-rotation guides for exceptional lateral load resistance. The TTF50X30KF's compact profile enables installation in confined spaces while maintaining 500km+ service life under standard conditions. Requires 20μm filtered air with ISO VG32 lubricant (optional oil-free operation).
- PCB board positioning in SMT assembly lines
- Workpiece clamping in CNC rotary tables
- Carton box stopping mechanisms in packaging systems
- Precision alignment in semiconductor wafer handling
- Tooling fixture positioning for automotive welding robots
Installation guidance:
Maintain 0.05mm maximum misalignment during mounting. Use Loctite 243
on mounting screws (torque to 5.4N·m). For vertical installations,
specify orientation code VUP/VDA during ordering.
| Property | Property Value |
|---|---|
| sku | TTM50X30KF |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | Non-magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Self-locking |
| Stroke | 30mm |
