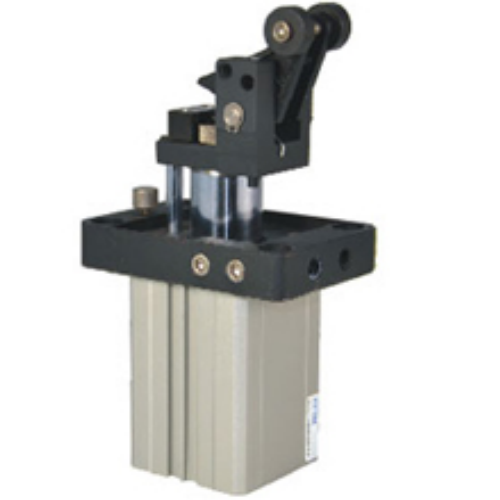

Airtac TTM Stopper Cylinder TTM50X30SK
2. Reinforced piston rod design significantly enhances cylinder impact resistance;
3. Heavy-duty stopper cylinders integrate hydraulic cushioning or adjustable oil cushioning systems for reliable energy absorption during impact;
4. Lever-roller type stopper cylinders feature a self-locking mechanism to prevent arm rebound and unintended pushing of blocked objects;
5. Multiple series and specifications available for flexible application requirements.
Category: Stopper Cylinders | Brand: AIRTAC | Series: TTM
AirTAC TTM50X30SK Stopper Cylinder Specifications
- Model: TTM50X30SK
- Type: Double-acting spring return stopper cylinder
- Bore size: Ø50mm
- Stroke: 30mm
- Operating pressure: 0.1–0.8 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber bumper (both ends)
- Rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Weight: 1.48kg (without accessories)
- Dimensions: 150mm(L) × 50mm(W) × 50mm(H)
- Mounting options: Front flange (MF1), rear flange (MF2), foot mounting (MF4)
- Sensor compatibility: M9/M12 proximity switch (not included)
High-rigidity stopper cylinder designed for precision positioning and workpiece blocking in automated systems. Features a unique wedge-shaped stopper mechanism with adjustable engagement force (20-80N via pressure regulation). The hardened steel guide rod and dual V-ring seals ensure smooth operation with ≤0.15mm positioning repeatability.
- Conveyor line pallet stopping mechanisms
- Robotic assembly station part positioning
- CNC machine tool workpiece clamping
- Automotive production line fixture locking
- Packaging machine indexing control
Installation note:
Align stopper face perpendicular to workpiece path (tolerance ±0.5°).
Lubricate with ISO VG32 hydraulic oil before initial use.
Minimum 2mm clearance required between stopper tip and target surface.
| Property | Property Value |
|---|---|
| sku | TTM50X30SK |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | S-Magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Non Self-locking |
| Stroke | 30mm |
