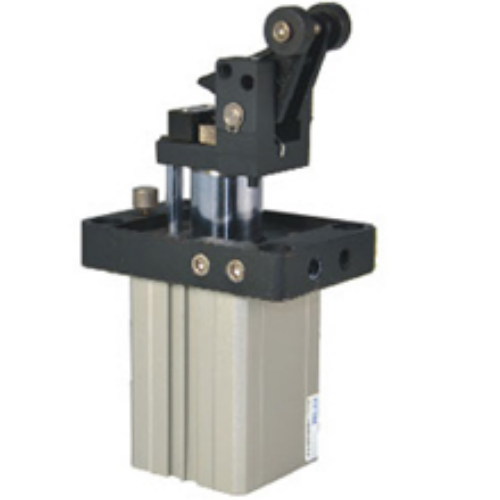

Airtac TTM Stopper Cylinder TTM50X30SKF
2. Reinforced piston rod design significantly enhances cylinder impact resistance;
3. Heavy-duty stopper cylinders integrate hydraulic cushioning or adjustable oil cushioning systems for reliable energy absorption during impact;
4. Lever-roller type stopper cylinders feature a self-locking mechanism to prevent arm rebound and unintended pushing of blocked objects;
5. Multiple series and specifications available for flexible application requirements.
Category: Stopper Cylinders | Brand: AIRTAC | Series: TTM
AirTAC TTM Series Blocking Cylinder TTM50X30SKF Specifications
- Model: TTM50X30SKF
- Type: Double-acting compact blocking cylinder
- Bore size: Ø50 mm
- Stroke: 30 mm (±1.5mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Cushioning type: Adjustable rubber buffer
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Chrome-plated steel (Cr12MoV)
- Seal type: NBR (Nitrile) wear-resistant seals
- Port size: G1/8 (BSPP thread)
- Ambient temperature: -20℃ to 80℃
- Weight: 1.8 kg (including standard accessories)
- Dimensions:
- Extended length: 189 mm
- Retracted length: 159 mm
- Body width: 70 mm
- Mounting height: 50 mm
- ISO standard: 6432 (mounting dimensions)
- Protection class: IP54 (standard sealing)
High-precision blocking cylinder with integrated shock absorption and anti-rotation guide mechanism. Features dual-position magnetic sensor slots (T-slot design) for precise position feedback. The wear-compensating seal structure ensures consistent performance through 3,000km+ service life. Requires filtered air with 5-40μm filtration and ISO VG32 grade lubrication.
- Workpiece positioning in CNC pallet systems
- Precision stopper in automotive assembly lines
- Carton alignment in packaging machinery
- Tooling fixture locking in semiconductor handling
- Safety interlock in robotic workcells
Installation guidelines:
Mount using M6x12 mounting bolts (ISO 4762) with 24-28 N·m torque.
Maintain 0.5-1mm clearance between cylinder base and mounting surface.
Lubricate through air supply (oil mist type) at 1 drop/5 cycles minimum.
| Property | Property Value |
|---|---|
| sku | TTM50X30SKF |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | S-Magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Self-locking |
| Stroke | 30mm |
