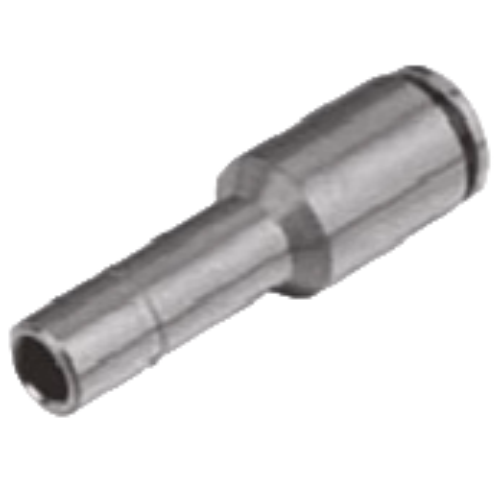

Airtac X-APGJT Full Copper Push-in Type Straight Joint X-APGJT806
$4.82
Regular price
$12.32
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APGJT806
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APGJT806 Full Brass Push-in Straight Connector Specifications
- Model: X-APGJT806
- Type: Straight-through brass connector (push-in type)
- Material: Lead-free brass CW617N (RoHS compliant)
- Thread Standard: G1/8 (BSPP parallel thread)
- Tube OD Compatibility: 6mm (1/4") pneumatic tubing
- Max Working Pressure: 1.0 MPa (145 psi)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Seal Material: NBR (Nitrile) O-ring
- Surface Treatment: Electroplated nickel (3-5μm thickness)
- Weight: 18.5g ±0.5g
- Dimensions: 20mm(L) × 16mm(W) × 18mm(H)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Re-sealing Pressure: ≥0.3 MPa after 10,000 insertion cycles
High-flow brass connector with self-locking collet mechanism, featuring 360° rotatable fitting body for flexible installation. The chrome-plated brass construction ensures corrosion resistance in humid environments. Integrated dust cap included for port protection when disconnected.
Typical Applications:
- Pneumatic cylinder manifold connections
- Compressed air distribution systems
- Industrial robot end effector tooling
- Packaging machine air circuit assembly
- CNC machine tool pneumatic clamps
- Laboratory equipment gas line interfaces
Installation guidelines:
Cut tubing square with dedicated cutter, insert fully until "click" sound.
For maintenance, push release collar radially while pulling tube out.
Torque limit: 1.2-1.5N·m during threaded port installation.
