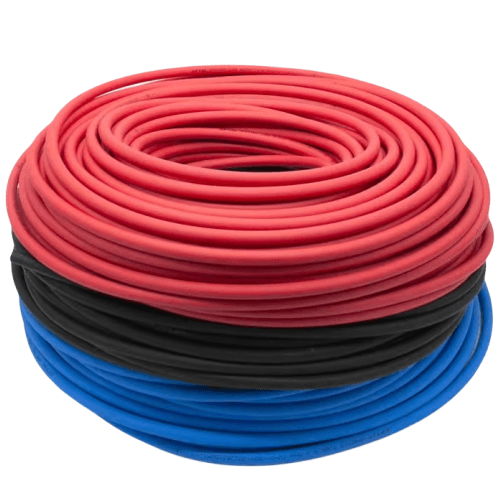

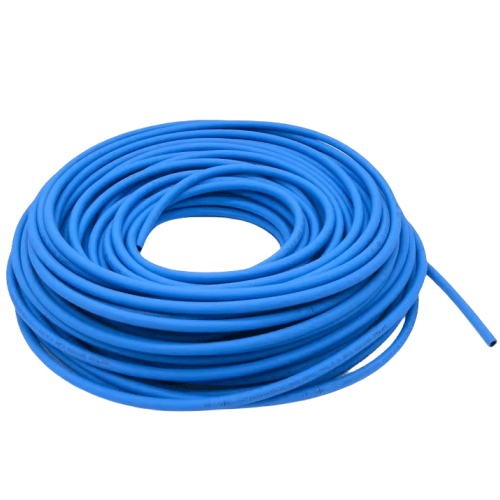

Airtac X-UWS98A PU Flame-Resistant Straight Tube X-UWS98A100065050MGN
AirTAC X-UWS98A100065050MGN Flame-Retardant PU Straight Tube Specifications
- Full Model: X-UWS98A100065050MGN
- Series Code: X-UWS98A (High-Temperature Flame-Retardant Series)
- Material: Polyurethane (PU) with UL94 V-0 flame retardant certification
- Length: 1000 ±5mm (customizable up to 5000mm)
- Inner Diameter: 6.5mm (Ø6.5±0.2mm)
- Outer Diameter: 10mm (Ø10±0.3mm)
- Wall Thickness: 1.75mm ±0.1mm
- Working Pressure: 0.3-1.0 MPa (4.35-145 PSI)
- Burst Pressure: ≥3.0 MPa
- Temperature Range: -40℃ to +120℃ (short-term 150℃ for ≤30 mins)
- Ozone Resistance: 100pphm @40℃, 20% elongation
- Bending Radius: ≥50mm (recommended minimum)
- Oil Resistance: SWA#1-3 compatible (≤70℃)
- Abrasion Resistance: ≤80mm³ (DIN 53516)
- Weight: 85g/m ±5% (approx. 85g for 1000mm length)
- Certifications: RoHS, REACH, MSHA
Engineered for critical environments requiring fire safety compliance, this PU tube maintains flexibility while resisting ignition sources up to 750℃ for 30 seconds (ISO 6941 vertical burn test). Features anti-static properties (surface resistance ≤10⁹Ω) and halogen-free composition. Compatible with pneumatic systems using synthetic ester-based lubricants.
- Automotive paint shop robotics (high-temperature curing zones)
- Steel mill pneumatic controls near molten metal
- Lithium battery production line safety systems
- Plasma cutting machine torch cooling circuits
- Offshore platform emergency shut-off systems
Installation Guidelines:1. Avoid kinking during routing - use 45° bend fittings for tight spaces
2. Maintain 2x OD clearance from heat sources >150℃
3. Pre-stretch 3-5% before clamping to prevent pressure-induced shrinkage
4. Not compatible with phosphate ester hydraulic fluids
| Property | Property Value |
|---|---|
| sku | X-UWS98A100065050MGN |
