Airtac X-UWS98A PU Flame-Resistant Straight Tube X-UWS98A120080050MGN
AirTAC X-UWS98A PU Flame-Retardant Straight Tube X-UWS98A120080050MGN Specifications
- Full Model Code: X-UWS98A120080050MGN
- Material: Flame-retardant polyurethane (UL 94 V-0 certified)

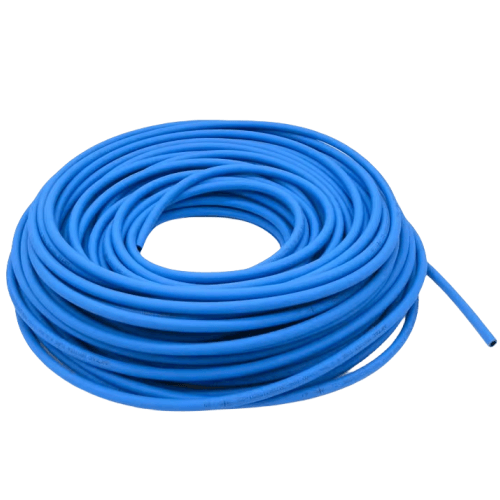

- Color: Blue with yellow tracer line
- Total Length: 1200 mm (±1% tolerance)
- Outer Diameter: 8 mm (±0.2 mm)
- Inner Diameter: 5 mm (±0.15 mm)
- Wall Thickness: 1.5 mm (±0.1 mm)
- Weight: 72 grams/meter (Total ~86g)
- Operating Temperature: -40℃ to 100℃ (-40°F to 212°F)
- Max Working Pressure: 1.0 MPa (145 psi)
- Burst Pressure: ≥4.0 MPa (580 psi)
- Minimum Bend Radius: 40 mm (static), 60 mm (dynamic)
- Oil Resistance: Compatible with ISO VG32 hydraulic oil
- Certifications: UL 94 V-0, RoHS compliant
- Packaged Dimensions: 1250mm(L) × 100mm(W) × 50mm(H) (coiled)

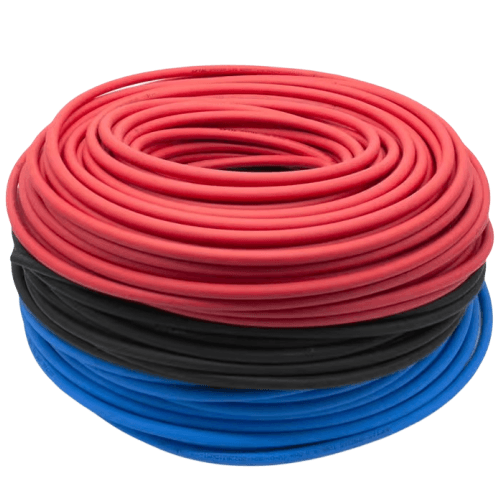

Heavy-duty flame-retardant pneumatic tubing with embedded anti-static wire, designed for critical applications requiring fire resistance. Features excellent memory retention and kink resistance, with a smooth inner bore to minimize pressure drop. The yellow tracer line enables quick visual identification of media flow direction.
- Automotive painting robots in explosive atmospheres
- Foundry equipment near molten metal processing
- Chemical plant pneumatic conveying systems
- Lithium battery production line fire-risk zones
- Steel mill combustion control systems
Installation guidelines:
Use tube cutters for clean perpendicular cuts. Maintain 30cm minimum
clearance from heat sources above 120℃. For permanent installations,
secure with matching flame-retardant clamps every 50cm. Pressure test
at 1.5x operating pressure before commissioning.
