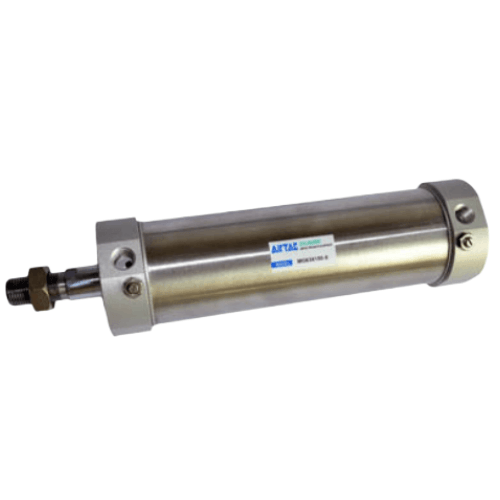

Airtac MSG Stainless Steel Mini Air Cylinder MSG25X100
2、Features asymmetrical bidirectional sealing structure with integrated oil reservoir for compact dimensions and enhanced lubrication retention;
3、Equipped with fixed cushion rings on both end caps to mitigate directional reversal impact;
4、End caps and stainless steel barrel integrated through crimped roller-clinching structure ensuring durable connection;
5、Precision-engineered stainless steel barrel tubing demonstrates exceptional strength and corrosion resistance;
6、Comprehensive selection of mounting accessories available for versatile installation configurations.
Category: Mini Cylinders , Brand: AIRTAC , Series: MSG
AirTAC MSG Stainless Steel Mini Cylinder MSG25X100 Technical Details
- Model: MSG25X100
- Bore size: 25 mm
- Stroke: 100 mm
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Operating temperature: -20℃ to 80℃
- Port size: M5x0.8 (1/8" NPT optional)
- Cushioning: Adjustable rubber buffer
- Material: Stainless steel cylinder tube & piston rod
- Seals: NBR (Nitrile) standard / FKM (Viton) optional
- Piston speed: 50–700 mm/s
- Weight: 0.92 kg (2.03 lbs)
- Dimensions: 160mm(L) × 40mm(W) × 40mm(H)
- Rod end thread: M10x1.25
- Mounting options: Basic front flange (MF series accessories compatible)
- ISO standard: 6432 (25mm bore compact cylinder specification)
Corrosion-resistant stainless steel mini cylinder designed for precision linear motion in confined spaces. Features dual adjustable cushions for smooth end-stroke deceleration and anti-rotation piston rod. Hermetic sealing structure prevents internal contamination, with IP65 protection rating. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Cleanroom automation in semiconductor manufacturing
- Packaging line actuator for food/beverage production
- Chemical processing equipment components
- Medical device positioning mechanisms
- Marine environment pneumatic systems
Installation guidelines:
Lubricate rod with silicone grease (PSE270 equivalent) before initial use.
Avoid side load exceeding 5N·m. For vertical mounting, use lock nut (ANM-10)
to prevent piston rod rotation. Maximum permissible lateral load: 15% of thrust force.
| Property | Property Value |
|---|---|
| sku | MSG25X100 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | <25 mm> |
| Stroke | 100mm |
