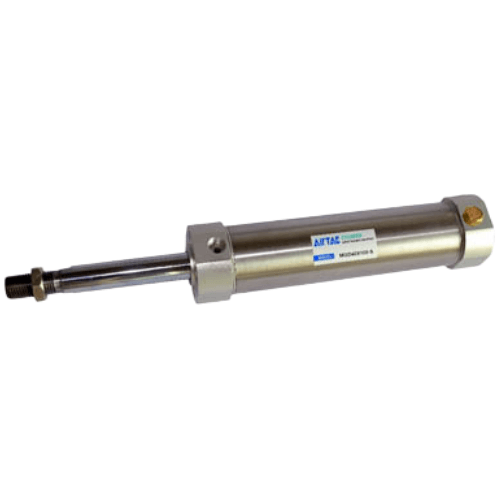

Airtac MTG Stainless Steel Mini Cylinder MTG25X75S
1. Compliant with JIS standards for precision engineering;
2. Features an asymmetric bidirectional sealing structure on the piston, delivering compact dimensions and integrated oil reservoir functionality to optimize lubrication retention;
3. Equipped with fixed cushion pads on both end caps, effectively mitigating directional change impacts and prolonging service life;
4. End caps and stainless steel barrel are secured via crimped roller wrapping technology, ensuring robust structural integrity;
5. High-precision stainless steel tubing construction provides exceptional strength and superior corrosion resistance;
6. Versatile mounting accessories available for flexible installation configurations.
Category: Mini Cylinders | Brand: Airtac | Series: MTG
AirTAC MTG Stainless Steel Miniature Cylinder MTG25X75S Technical Details
- Model: MTG25X75S
- Type: Double-acting single piston rod cylinder
- Bore size: Ø25mm (±0.1mm tolerance)
- Stroke: 75mm (adjustable cushioning)
- Operating pressure: 0.1-0.9 MPa
- Temperature range: -20°C to 150°C
- Port size: M5x0.8 (1/8" NPT optional)
- Cushion type: Adjustable rubber buffer (both ends)
- Material:
- Cylinder tube: SUS304 stainless steel
- Piston rod: SUS303 stainless steel
- Seals: NBR + FKM combination
- Mounting options: Basic foot (MF1), front flange (MF2), rear flange (MF3)
- Weight: 890g ±2% (excluding accessories)
- Dimensions:
- Total length: 149mm (at mid-stroke)
- Body diameter: Ø32mm
- Mounting base: 25mm x 25mm square
- Rod end thread: M10x1.25
Precision-engineered corrosion-resistant cylinder with full stainless steel construction, featuring dual anti-rotation guide rods for enhanced lateral load capacity. The chrome-plated piston rod and multi-lip seal design ensure ≤0.5mm/s creep speed at 0.5MPa. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
- Cleanroom automation (ISO Class 5-8 environments)
- Semiconductor wafer handling systems
- Pharmaceutical blister packaging machines
- Marine equipment actuators
- High-cycle food processing lines (500,000+ cycles/month)
Maintenance protocol:
Lubricate with ISO VG32 turbine oil monthly in continuous operation.
Use 0.5Nm torque limit on mounting screws to prevent tube deformation.
Magnetic versions available (add "-M" suffix) for position sensing.
| Property | Property Value |
|---|---|
| sku | MTG25X75S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Stroke | 75mm |
