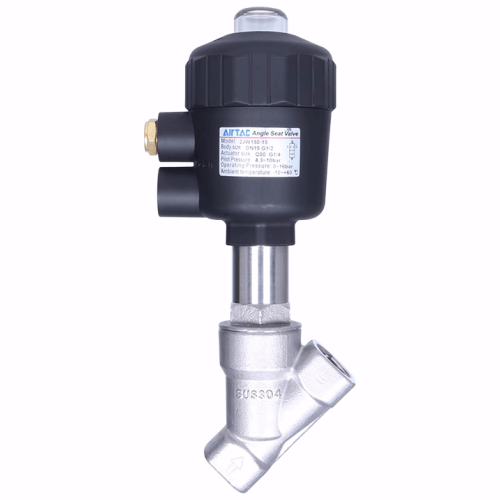

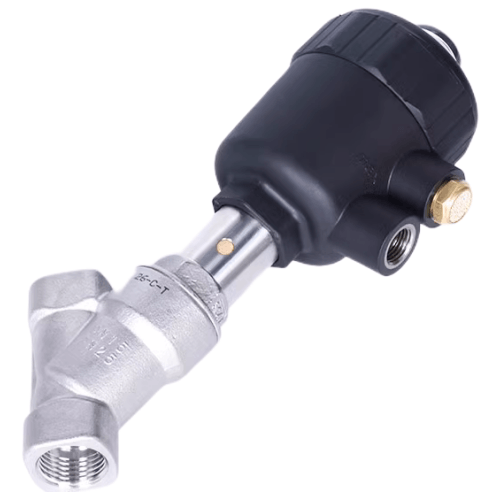

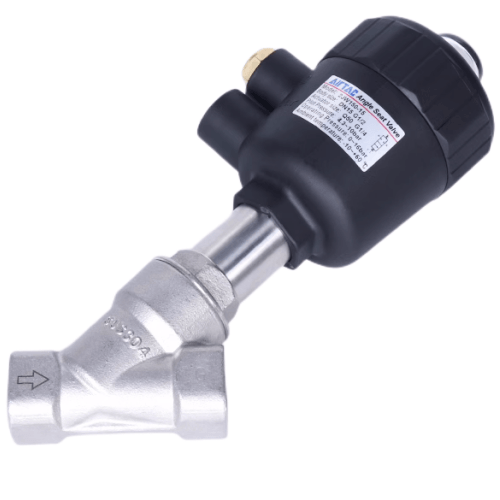

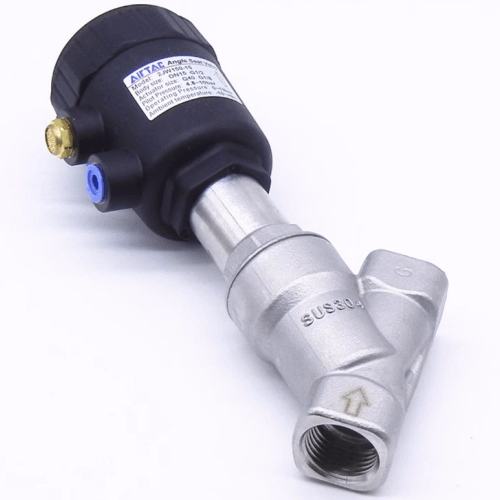

Airtac 2JW Angle Seat Valve 2JW15015Q50G
$113.95
Regular price
$121.45
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JW15015Q50G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation note:
Arrow marking indicates flow direction – must align with pipeline.
For steam applications, install with actuator positioned below valve body
to prevent condensate accumulation. Pre-lubricate seals when handling media
with particulate content >50μm.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JW15015Q50G Angle Seat Valve Specifications
- Model: 2JW15015Q50G
- Type: 2-way normally open (pneumatic actuation)
- Port size: G1/2" (BSPP thread)
- Operating pressure: 0.2–1.0 MPa
- Max working pressure: 10 bar
- Medium temperature: -10℃ to 180℃ (with FKM seals)
- Valve body material: Stainless steel CF8M (316 equivalent)
- Seal material: FKM/Viton® (standard), EPDM optional
- Actuation pressure: 2–8 bar
- Flow coefficient (Cv): 4.2
- Response time: ≤0.3s (at 6 bar)
- Weight: 1.25 kg ±5%
- Dimensions: 135mm(L) × 68mm(W) × 115mm(H)
- Protection rating: IP67 (standard)
- Certifications: RoHS compliant, REACH tested
High-temperature angle seat valve with stainless steel construction, featuring zero-leakage piston design and 2 million cycle durability. The 90° flow path optimizes laminar flow for viscous media. Spring return mechanism ensures fail-safe operation during air supply interruption.
Typical Applications:
- Steam control in food processing sterilizers
- High-pressure CIP (Clean-in-Place) systems
- Chemical dosing systems with aggressive media
- Thermal oil circulation in plastic molding machines
- Beverage filling line shut-off control
Installation note:
Arrow marking indicates flow direction – must align with pipeline.
For steam applications, install with actuator positioned below valve body
to prevent condensate accumulation. Pre-lubricate seals when handling media
with particulate content >50μm.
| Property | Property Value |
|---|---|
| sku | 2JW15015Q50G |
| Port Size | G1/2 |
| Flow Aperture | <15mm> |
