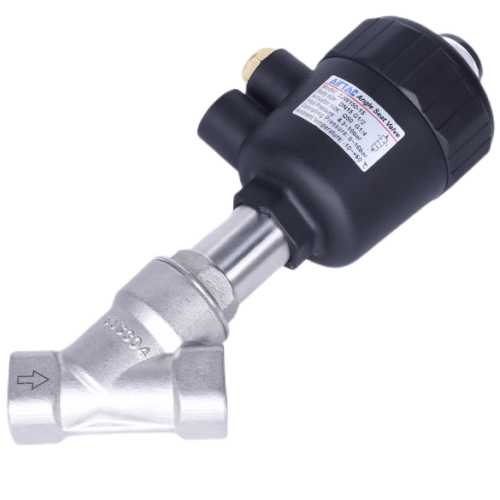

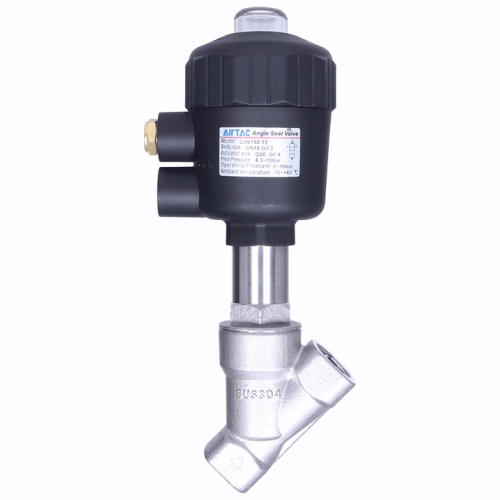

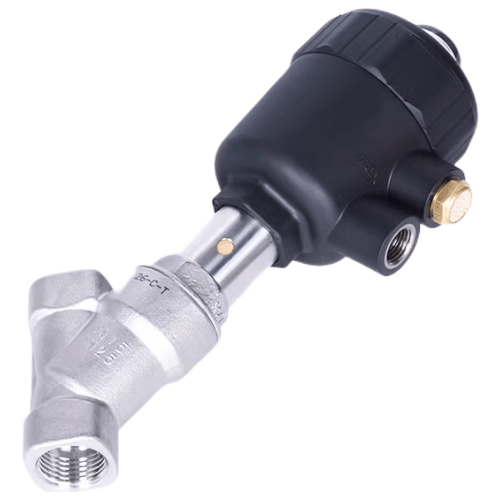

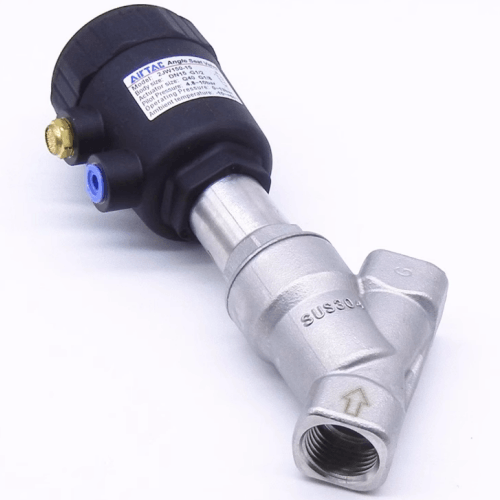

Airtac 2JW Angle Seat Valve 2JW20020Q40G
$123.26
Regular price
$130.76
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JW20020Q40G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation note:
Ensure pipeline alignment to prevent mechanical stress. For steam applications,
install downstream condensate separator. Minimum 20 pipe diameters straight run
upstream recommended for optimal flow measurement.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JW20020Q40G Angle Seat Valve Specifications
- Model: 2JW20020Q40G
- Type: 2-way normally open (direct-acting)
- Body material: Stainless steel CF8M (316 equivalent)
- Seal material: PTFE + EPDM (high-temperature variant)
- Port connection: G1/2" ISO228 standard
- Operating pressure: 0.1–1.0 MPa
- Temperature range: -5℃ to 180℃ (EPDM)/-10℃ to 200℃ (PTFE)
- Voltage options: AC24V, AC110V, AC220V, DC24V (±10%)
- Power consumption: 5.5W (AC), 6.5W (DC)
- Flow coefficient: Cv=4.0 (Kv=3.5)
- Response time: ≤50ms (actuation)
- Protection rating: IP67 (coil)/IP65 (valve body)
- Weight: 980g ±2%
- Dimensions: 102mm(L) × 54mm(W) × 112mm(H)
- Mounting orientation: Any (360° adjustable)
High-flow angle seat valve with steam compatibility, featuring anti-clogging design for viscous media. The stainless steel construction ensures corrosion resistance in aggressive environments. Includes manual override lever for emergency operation and status indication window.
Typical Applications:
- Steam sterilization systems in pharmaceutical plants
- High-temperature CIP (Clean-in-Place) processes
- Beverage filling line control (juice, dairy, alcohol)
- Chemical dosing systems with aggressive media
- Textile machinery steam control
Installation note:
Ensure pipeline alignment to prevent mechanical stress. For steam applications,
install downstream condensate separator. Minimum 20 pipe diameters straight run
upstream recommended for optimal flow measurement.
Service advisory:
Lubricate pivot points annually with silicone-free grease (NLGI #2).
Replace seals every 500,000 cycles or 2 years in continuous operation.
| Property | Property Value |
|---|---|
| sku | 2JW20020Q40G |
| Port Size | G3/4 |
| Flow Aperture | <20mm> |
