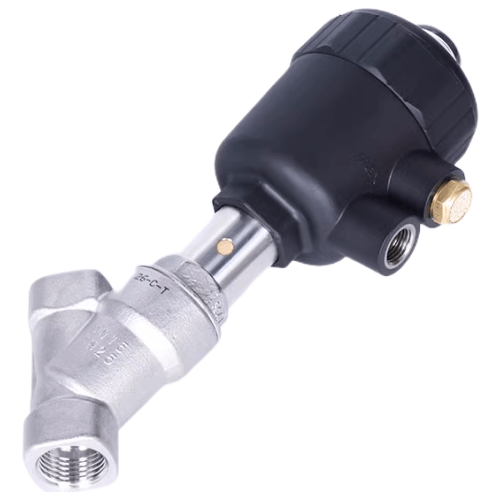

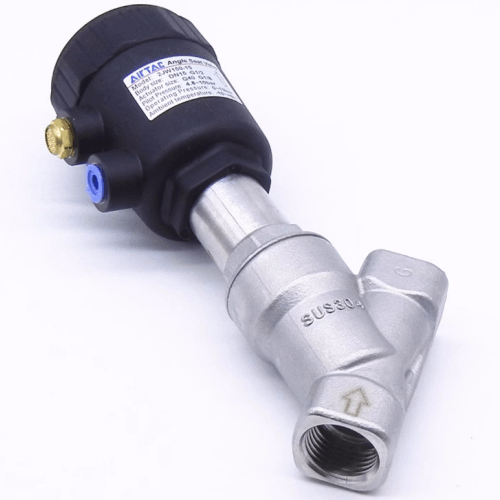

Airtac 2JW Angle Seat Valve 2JW25025Q63G
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.

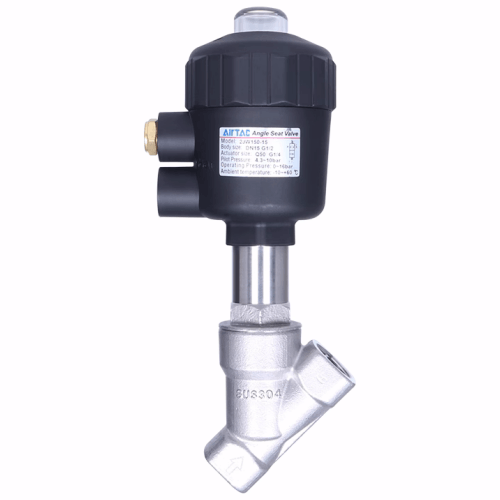

4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JW25025Q63G Angle Seat Valve Specifications
- Model: 2JW25025Q63G
- Type: 2-way normally open (pneumatic actuation)
- Port size: G1/4 (ISO228/1 standard)
- Operating pressure: 0.15–1.0 MPa
- Voltage: AC24V/AC220V (solenoid coil option)
- Flow coefficient (Cv): 4.2
- Seal material: PTFE + FKM (high-temp variant)
- Temperature range: -10℃ to 180℃ (media temp)
- Ambient temperature: -20℃ to 60℃
- Response time: ≤0.15s (at 0.6MPa)
- Protection rating: IP67 (solenoid version)
- Weight: 0.68 kg (with actuator)
- Dimensions: 135mm(L) × 50mm(W) × 102mm(H)
- Connection type: Screwed (EN ISO 1179)
- Media compatibility: Air, water, steam, mild chemicals
High-performance angle seat valve featuring stainless steel 304 actuator and forged brass body. The 90° flow path design minimizes pressure drop, with PTFE stem seal ensuring zero leakage. Optional steam-jacketed version available (specify -S suffix). Requires 0.3-0.6 MPa pilot air pressure for optimal snap-action operation.
- Steam sterilization systems in pharmaceutical lines
- High-cycle bottling/packaging machinery
- Thermal oil control in plastic injection molds
- High-temperature CIP (Clean-in-Place) systems
- Energy plant condensate drainage
Installation note:
Mount with flow direction arrow aligned. For steam applications,
install with actuator below pipe (condensate drainage position).
Lubricate stem quarterly with silicone-free grease (ISO VG 32).
| Property | Property Value |
|---|---|
| sku | 2JW25025Q63G |
| Port Size | G1 |
| Flow Aperture | <25 mm> |
