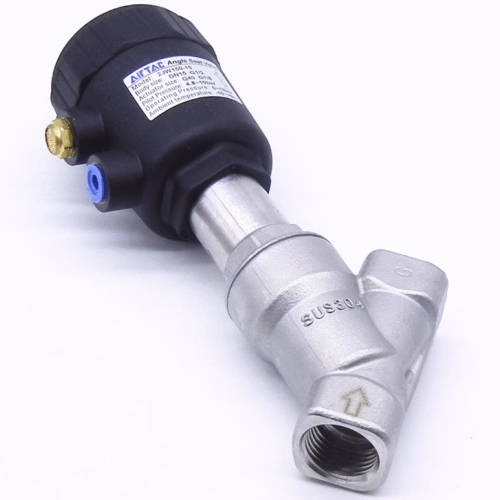

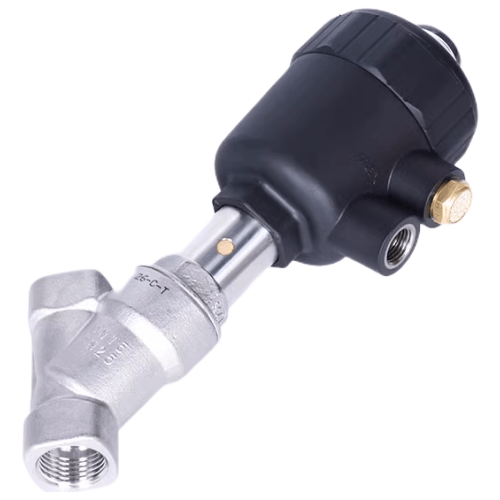

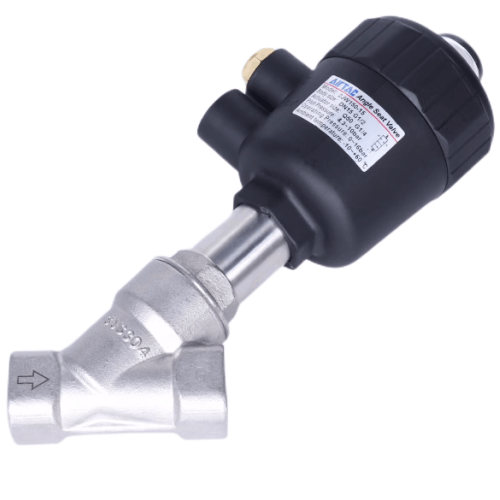

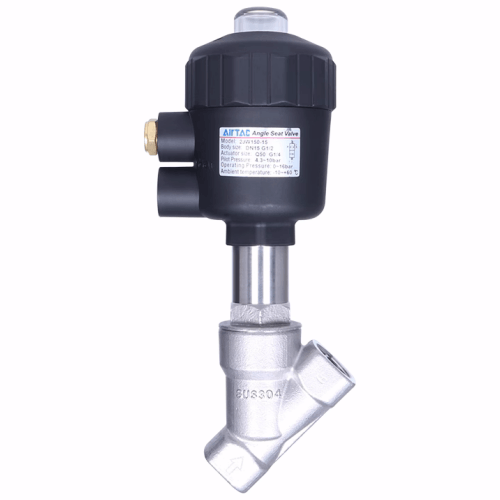

Airtac 2JW Angle Seat Valve 2JW25025Q80G
$211.66
Regular price
$219.16
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JW25025Q80G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation note:
Mount with actuator facing upward for condensate drainage. Use vibration-absorbing
brackets in high-frequency cycling applications (>500,000 cycles/year).
Lubricate pivot points every 2,000 operating hours with silicone-free grease.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JW25025Q80G Angle Seat Valve Specifications
- Model: 2JW25025Q80G
- Type: 2-way normally open (pneumatic actuation)
- Port connection: G1" (BSPP thread)
- Valve orifice: Ø25mm
- Operating pressure: 0.15–1.0 MPa
- Max fluid temperature: 180℃ (with FKM seals)
- Actuation pressure: 0.3–0.8 MPa (air pilot)
- Body material: Stainless steel CF8M (316 equivalent)
- Seal material: Fluorocarbon rubber (FKM)
- Temperature range: -10℃ to 180℃
- Flow coefficient (Cv): 16.5
- Weight: 2.8 kg
- Dimensions: 196mm(L) × 122mm(W) × 145mm(H)
- Protection rating: IP67 (with optional enclosure)
- Response time: ≤0.3s (at 0.6 MPa)
Heavy-duty angle pattern valve with 90° flow path design, optimized for high-temperature liquid or steam applications. Features anti-clogging spool mechanism and zero-leakage piston seal. Requires dry compressed air (ISO 8573-1:2010 Class 3) for reliable actuation.
Typical Applications:
- Steam sterilization systems in pharmaceutical plants
- Hot water circulation control in food processing
- Chemical dosing systems with corrosive media
- High-pressure cleaning equipment
- Textile machinery dyeing processes
Installation note:
Mount with actuator facing upward for condensate drainage. Use vibration-absorbing
brackets in high-frequency cycling applications (>500,000 cycles/year).
Lubricate pivot points every 2,000 operating hours with silicone-free grease.
| Property | Property Value |
|---|---|
| sku | 2JW25025Q80G |
| Port Size | G1 |
| Flow Aperture | <25 mm> |
