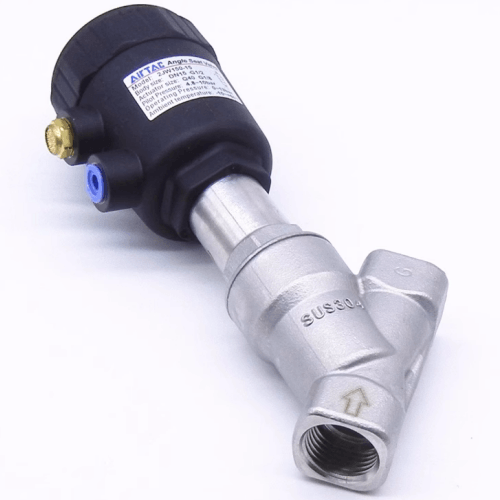

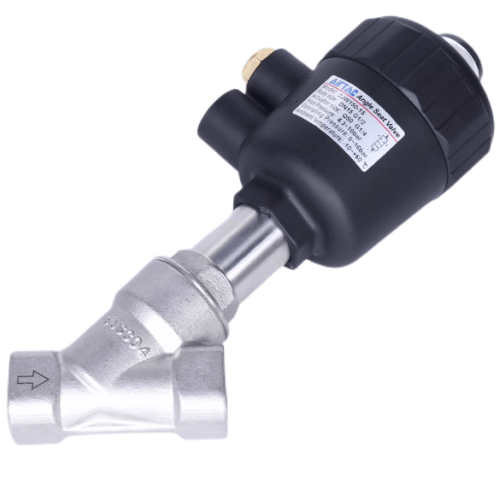

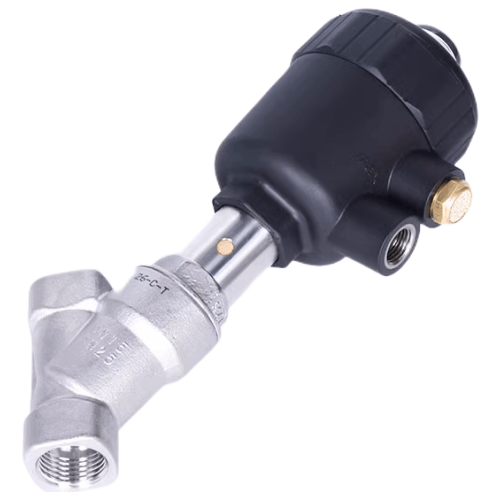

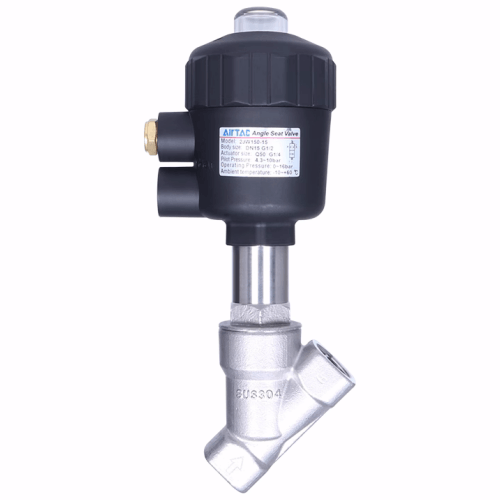

Airtac 2JW Angle Seat Valve 2JW32032Q63G
$223.30
Regular price
$230.80
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JW32032Q63G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation guidelines:
Mount vertically with actuator upward. Allow 15mm clearance for stem rotation.
Use PTFE thread sealant on ports. Perform monthly diaphragm inspection in
high-cycle applications (>5000 operations/day).
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JW32032Q63G Angle Seat Valve Specifications
- Model: 2JW32032Q63G
- Type: 3/2-way (single acting) with manual override
- Port connection: G1/2" (ISO228/1 standard)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 2000 L/min (Cv=3.2 at 0.6MPa)
- Seal material: High-temperature NBR (up to 120℃ peak)
- Body material: Stainless steel 304 + anodized aluminum
- Temperature range: -10℃ to 80℃ (continuous operation)
- Response time: ≤25ms (at rated voltage)
- Protection class: IP67 (dust/water resistant)
- Weight: 850g ±3% (including coil)
- Dimensions: 120mm(L) × 60mm(W) × 80mm(H)
High-flow angle seat valve with 90° stainless steel stem rotation mechanism, optimized for viscous fluids and steam applications. Features dual-chamber design for reduced pressure loss and anti-clogging internal geometry. Requires 25μm filtered media with viscosity ≤220cSt.
Industrial Applications:
- Beverage filling line shut-off control
- Steam sterilization systems in pharmaceutical plants
- High-pressure cleaning equipment
- Chemical dosing systems with aggressive media
- Textile machinery steam regulation
Installation guidelines:
Mount vertically with actuator upward. Allow 15mm clearance for stem rotation.
Use PTFE thread sealant on ports. Perform monthly diaphragm inspection in
high-cycle applications (>5000 operations/day).
| Property | Property Value |
|---|---|
| sku | 2JW32032Q63G |
| Port Size | G1-1/4 |
| Flow Aperture | <32 mm> |
