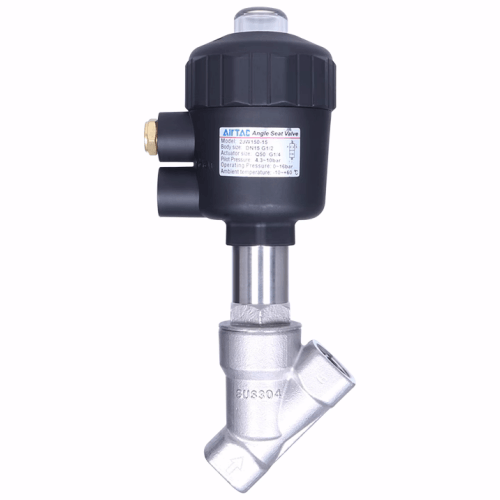

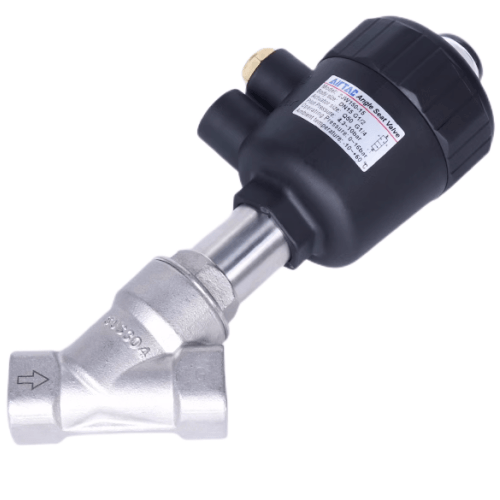

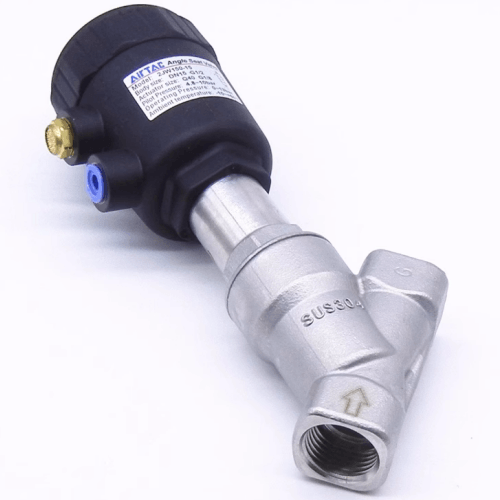

Airtac 2JW Angle Seat Valve 2JWK25025Q50G
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JWK25025Q50G Angle Seat Valve Specifications
- Model: 2JWK25025Q50G
- Type: 2-position 2-way normally open (pilot-operated)
- Port size: G1/2 (ISO228/1 standard)
- Operating pressure: 0.15–1.0 MPa
- Voltage options: DC24V (±10%), AC220V (50/60Hz)
- Body material: Stainless steel CF8M (SS316)
- Seal material: PTFE/Viton composite
- Temperature range: -10℃ to 180℃ (with high-temp kit)
- Flow capacity: Cv=4.2 (Kv=3.6)
- Response time: ≤20ms (at 0.5MPa)
- Protection rating: IP67 (coil)/IP65 (valve)
- Weight: 680g ±2% (including coil)
- Dimensions: 98mm(L) × 52mm(W) × 82mm(H) (port center to body edge)
High-flow angle seat valve with 90° stainless steel body, designed for aggressive media and steam applications. Features zero-leakage PTFE/Viton seals and thermal isolation design. The 45° seat angle ensures smooth flow with minimal pressure drop. Requires 25μm filtered media and manual override capability (optional).
- Steam line control in food processing
- Chemical dosing systems with corrosive liquids
- High-temperature water circulation loops
- Brewery CIP (Clean-in-Place) systems
- Textile machinery steam shut-off
Installation note:
Mount with actuator oriented horizontally. Allow 15mm thermal expansion
space when handling media above 120℃. Lubricate stem quarterly in
high-cycle applications (>50k operations/month).
| Property | Property Value |
|---|---|
| sku | 2JWK25025Q50G |
| Port Size | G1 |
| Flow Aperture | <25 mm> |
