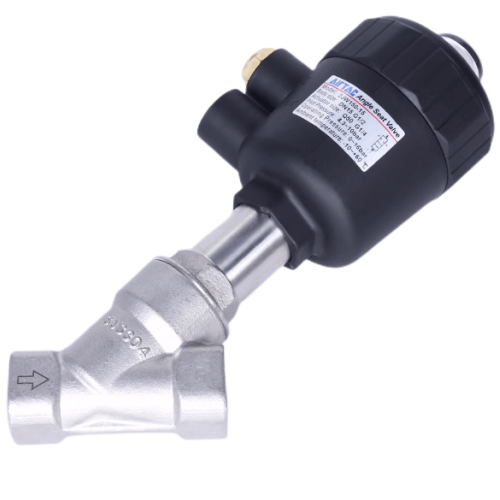

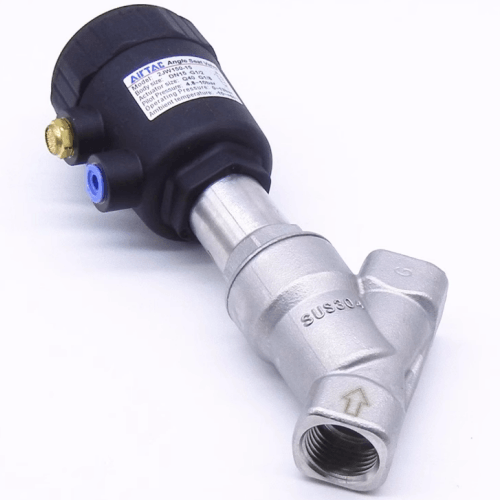

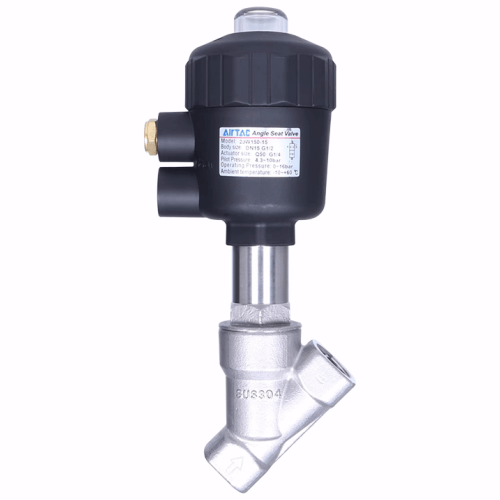

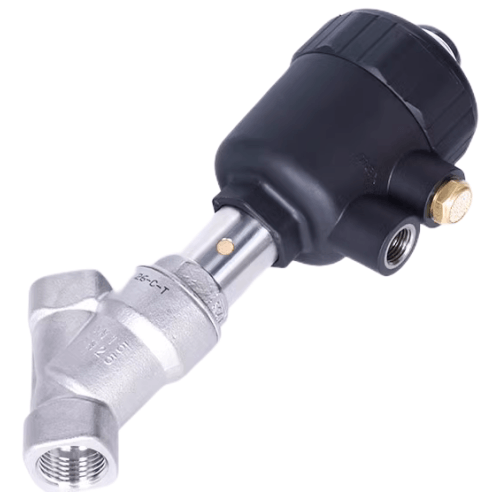

Airtac 2JW Angle Seat Valve 2JWK25025Q63G
$176.77
Regular price
$184.27
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JWK25025Q63G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation note:
Always install with actuator facing upward in vertical pipelines.
Apply thread sealant only on male threads (not NPT threads).
Perform monthly manual cycling to prevent seal adhesion in static systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JWK25025Q63G Angle Seat Valve Specifications
- Model: 2JWK25025Q63G
- Type: 2-position, 3-way normally closed (mechanical spring return)
- Port size: G1/4 (ISO228/1 standard)
- Operating pressure: 0.15–1.0 MPa
- Voltage options: AC24V, DC24V (solenoid coil)
- Weight: 850g ±5% (including coil)
- Dimensions: 102mm(L) × 60mm(W) × 74mm(H)
- Body material: Stainless steel CF8M (SS316 equivalent)
- Seal material: PTFE + EPDM (FDA compliant)
- Temperature range: -10℃ to 180℃ (medium)/ -20℃ to 60℃ (ambient)
- Flow rate: 2500 l/min (ANR) at 0.5MPa
- Response time: ≤15ms (actuation), ≤20ms (reset)
- Protection rating: IP67 (solenoid), IP65 (valve body)
- Mounting orientation: Horizontal or vertical (port axis ±5° tolerance)
High-flow angle seat valve with stainless steel construction and zero dead-volume design. Features bubble-tight shutoff capability and chemical-resistant seals, optimized for steam/water applications. Includes manual override and position indicator. Requires 5μm filtered media with viscosity ≤21 cSt.
Typical Applications:
- Steam sterilization systems in pharmaceutical production
- High-temperature liquid filling machines
- Industrial dishwasher water control
- Chemical dosing systems with aggressive media
- Beverage processing CIP (Clean-in-Place) circuits
Installation note:
Always install with actuator facing upward in vertical pipelines.
Apply thread sealant only on male threads (not NPT threads).
Perform monthly manual cycling to prevent seal adhesion in static systems.
Media Compatibility:
- Water (≤120℃)
- Saturated steam (≤8 bar)
- Mild acids/alkalis (pH 4-10)
- Compressed air (dew point -25℃)
| Property | Property Value |
|---|---|
| sku | 2JWK25025Q63G |
| Port Size | G1 |
| Flow Aperture | <25 mm> |
