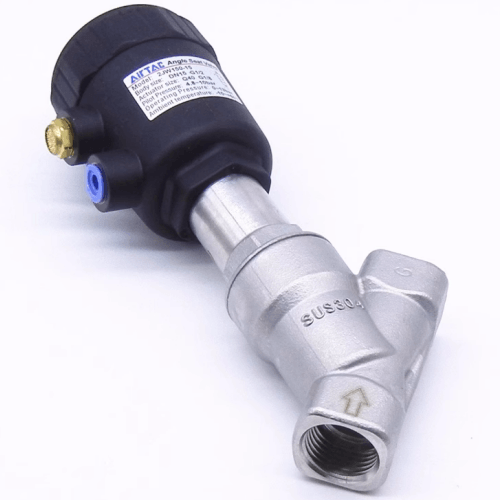

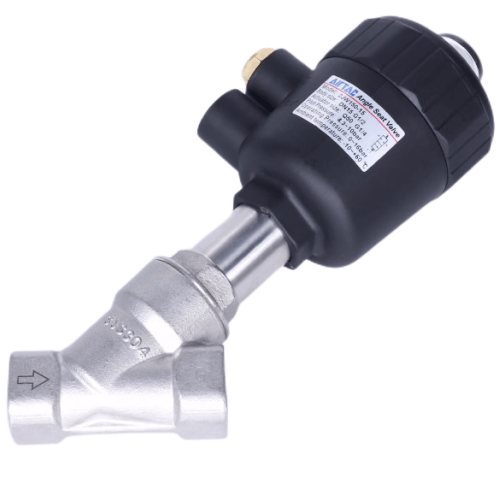

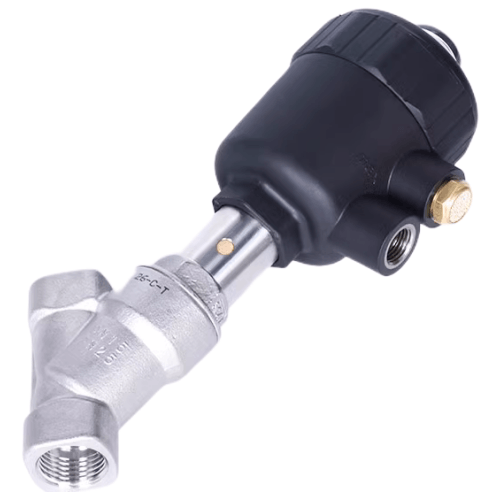

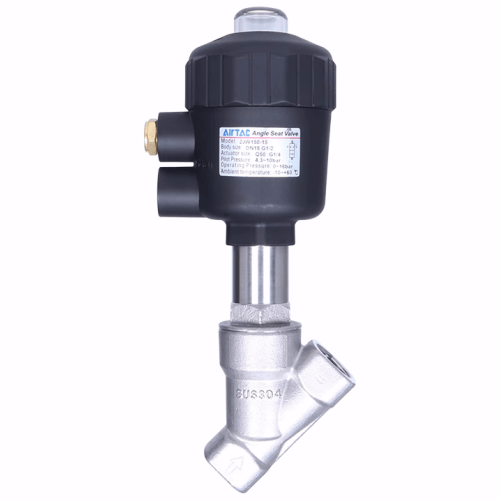

Airtac 2JW Angle Seat Valve 2JWK32032Q63G
$223.30
Regular price
$230.80
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JWK32032Q63G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation guidelines:
Install downstream filter regulator. For steam applications,
always orient valve outlet downward (15° minimum). Allow
30-second warm-up period before full pressure operation.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JWK32032Q63G Angle Seat Valve Technical Details
- Full model code: 2JW-K320-32Q63G
- Valve type: 2-way normally open (manual override optional)
- Port connection: G1/2" (BSPP thread)
- Operating pressure range: 0.15–1.0 MPa
- Voltage variants: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 2.2W (DC), 3.5VA (AC)
- Body material: CNC-machined aluminum alloy (anodized finish)
- Seal components: High-grade NBR + reinforced PTFE
- Fluid temperature range: -10℃ to 180℃ (dry air/lubricated)
- Flow coefficient (Cv): 0.63
- Response time: ≤15ms (at 0.5MPa)
- Weight: 580g ±2% (including coil)
- Dimensions: 78mm(L) × 42mm(W) × 92mm(H)
- Protection class: IP67 (coil), IP40 (valve body)
- Mounting orientation: Any (horizontal/vertical)
High-flow angle seat valve with precision-machined stainless steel piston, optimized for steam and aggressive media applications. Features zero leakage design with self-cleaning seat structure. Includes LED status indicator on coil and manual override for emergency operation. Requires 5μm filtration (ISO 8573-1 class 4).
Industrial Applications:
- Steam line control in food processing autoclaves
- Chemical dosing systems with corrosive liquids
- High-temperature water circulation in sterilization equipment
- Pneumatic conveyor shut-off valves in pharmaceutical plants
- Coolant control in CNC machining centers
Installation guidelines:
Install downstream filter regulator. For steam applications,
always orient valve outlet downward (15° minimum). Allow
30-second warm-up period before full pressure operation.
Service life:
5 million cycles (at 0.5MPa, 1Hz frequency). Replace seals
every 12 months in continuous operation. Use only ISO VG32
lubricant for maintenance.
| Property | Property Value |
|---|---|
| sku | 2JWK32032Q63G |
| Port Size | G1-1/4 |
| Flow Aperture | <32 mm> |
