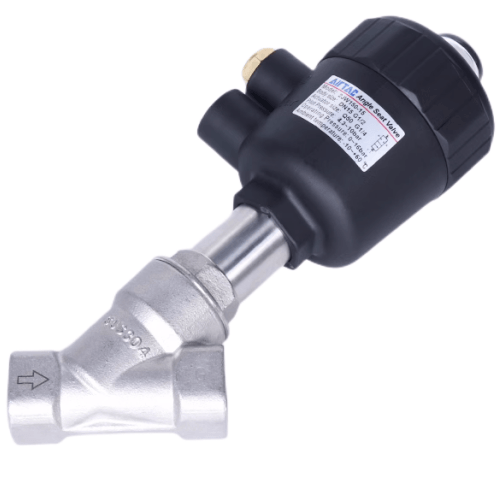

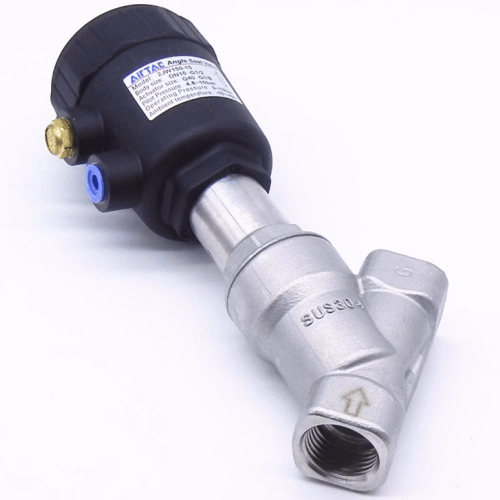

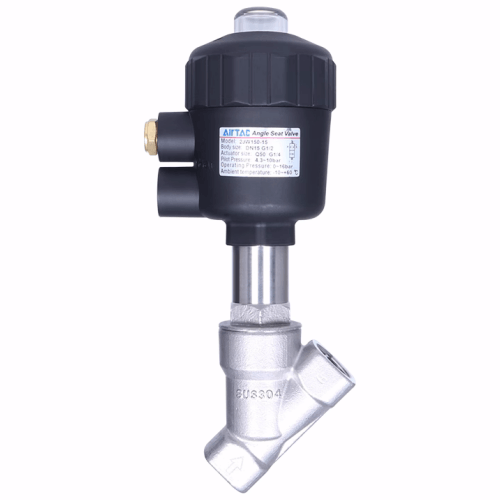

Airtac 2JW Angle Seat Valve 2JWY15015Q50G
$113.95
Regular price
$121.45
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JWY15015Q50G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation note:
Arrow markings indicate flow direction - must align with process media flow.
For steam applications, install with valve stem horizontal to prevent condensate accumulation.
Always use PTFE sealing tape on male threads, avoiding entry into fluid path.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JWY15015Q50G Angle Seat Valve Specifications
- Model: 2JWY15015Q50G
- Type: 2/2-way normally closed (pneumatic actuation)
- Port size: G1/2" (BSPP thread)
- Operating pressure: 0.15–1.0 MPa
- Voltage options: AC24V, DC24V (solenoid version)
- Weight: 0.7 kg ±5%
- Dimensions: 100mm(L) × 50mm(W) × 70mm(H)
- Body material: Stainless steel CF8M (316 equivalent)
- Seal material: PTFE + EPDM (high-temp variant available)
- Temperature range: -10℃ to 180℃ (standard seals), up to 200℃ (optional)
- Flow coefficient (Cv): 4.2
- Response time: ≤0.3s (at 0.6 MPa)
- Protection rating: IP67 (solenoid version)
- Optional accessories: Manual override, position indicator
High-flow angle seat valve with 90° stainless steel body design, optimized for steam and aggressive media control. Features zero-leakage shut-off and thermal shock resistance. The angled port configuration enables efficient drainage and minimizes pressure drop. Compatible with both pneumatic and electro-pneumatic control systems.
Typical Applications:
- Steam sterilization systems in pharmaceutical production
- High-temperature fluid control in food & beverage processing
- Chemical dosing systems with corrosive media
- Textile machinery steam line management
- Semiconductor plant pure steam distribution
Installation note:
Arrow markings indicate flow direction - must align with process media flow.
For steam applications, install with valve stem horizontal to prevent condensate accumulation.
Always use PTFE sealing tape on male threads, avoiding entry into fluid path.
Maintenance:
Lubricate stem assembly with high-temperature grease (Molykote 111 recommended)
every 5,000 cycles in continuous operation. Use 40μm filtered compressed air
for pneumatic actuation systems.
| Property | Property Value |
|---|---|
| sku | 2JWY15015Q50G |
| Port Size | G1/2 |
| Flow Aperture | <15mm> |
