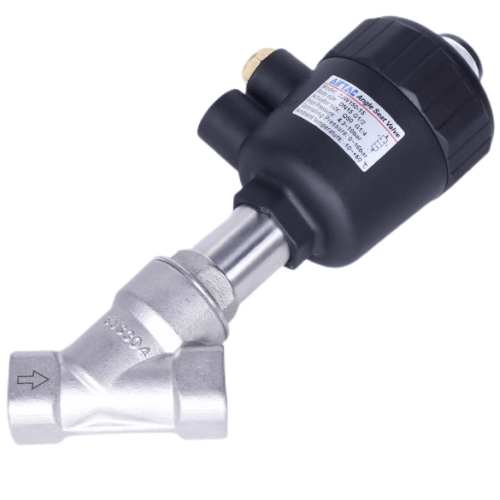

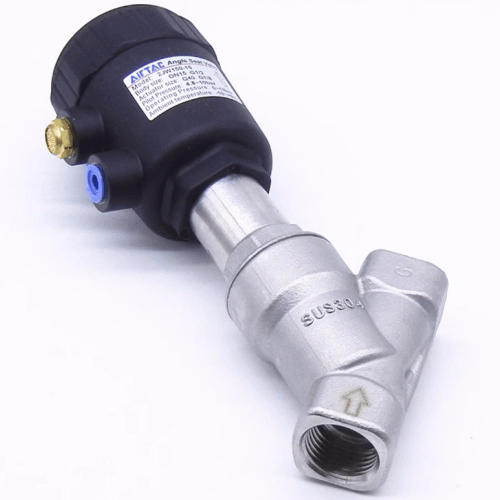

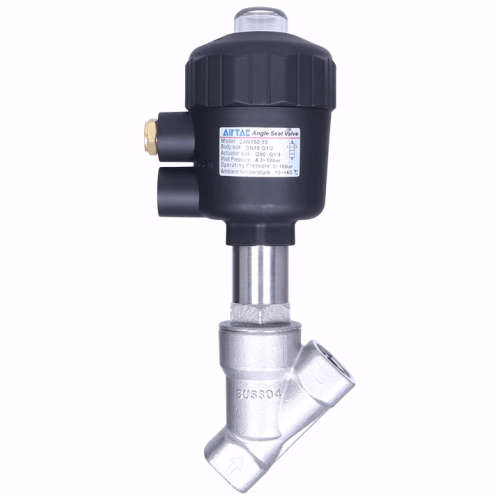

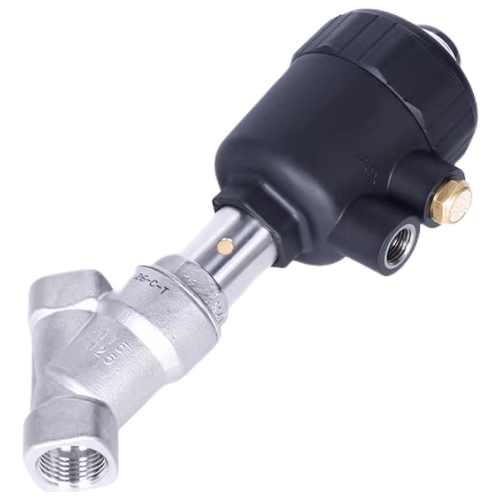

Airtac 2JW Angle Seat Valve 2JWY20020Q40G
$123.26
Regular price
$130.76
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2JWY20020Q40G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pneumatically controlled operation enables usage in electricity-free, flammable or explosion-prone environments. Features low actuation pressure capability with low-pressure control for high-pressure systems.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
Installation note:
Mount with flow direction matching body arrow marking. For steam applications,
install condensate separator upstream. Lubricate piston seal annually with
silicone-free grease (ISO VG 32 equivalent). Avoid side-loading during piping.
2. Stainless steel construction of body and linkage rod ensures superior corrosion resistance. PTFE seals provide wide compatibility with high-temperature and highly corrosive fluids.
3. 45° angular seat design with streamlined internal cavity reduces flow path resistance for stabilized fluid flow and achieves high flow rates. Integrated filter element in linkage rod prevents contaminant ingress, extending service life.
4. Actuator equipped with visual position indicator window for real-time valve opening monitoring and flow regulation. Convertible to accommodate limit switches or emergency manual override.
5. Recessed metal fittings on actuator ports with transitional mounting plate ensures simplified integration with NAMUR solenoid valves.
6. 360° rotatable actuator design simplifies installation orientation.
Category: Angular Seat Valves | Brand: AirTAC | Series: 2JW
AirTAC 2JWY20020Q40G Angle Seat Valve Specifications
- Model: 2JWY20020Q40G
- Type: 2-position 3-way (normally closed)
- Port size: G1/2" (ISO228/1 standard)
- Operating pressure: 0.1–1.0 MPa
- Voltage options: AC24V/DC24V (coil code Q40)
- Weight: 1.2kg ±5% (including coil)
- Dimensions: 120mm(L) × 80mm(W) × 65mm(H)
- Seal material: FKM (Viton®) fluorocarbon rubber
- Temperature range: -10℃ to 150℃
- Flow rate: 2000 l/min (ANR, at 0.5MPa)
- Response time: ≤50ms (at rated voltage)
- Protection rating: IP67 (coil protection)
- Port alignment: 90° angled flow path
- Actuation: Pneumatic pilot operated
High-flow angle seat valve with thermal-resistant seals, designed for aggressive media and steam applications. Features stainless steel (SUS304) piston and brass body with electroless nickel plating. The 90° port configuration enables space-saving installations in piping systems.
Typical Applications:
- Steam line control in food processing equipment
- Chemical dosing systems with corrosive fluids
- High-temperature water circulation systems
- Pharmaceutical CIP/SIP processes
- Industrial boiler feed controls
Installation note:
Mount with flow direction matching body arrow marking. For steam applications,
install condensate separator upstream. Lubricate piston seal annually with
silicone-free grease (ISO VG 32 equivalent). Avoid side-loading during piping.
| Property | Property Value |
|---|---|
| sku | 2JWY20020Q40G |
| Port Size | G3/4 |
| Flow Aperture | <20mm> |
