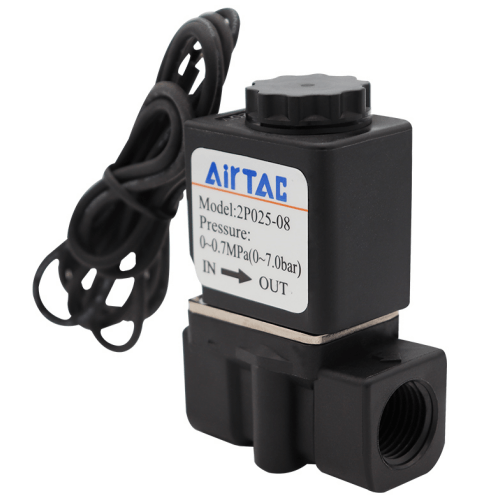

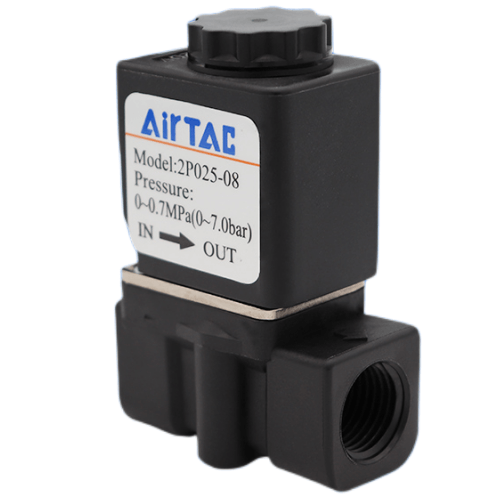

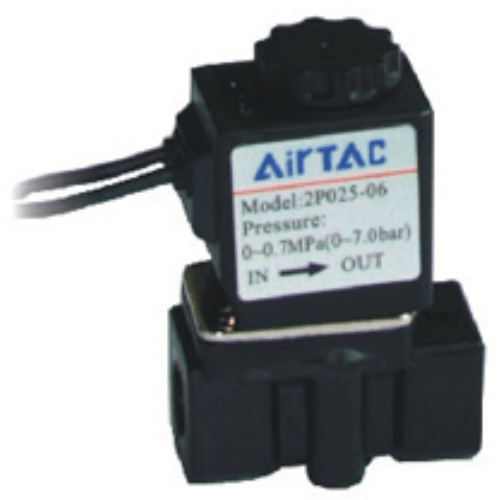

Airtac 2P Fluid Control Valve 2P025-06-A
2. Compact design featuring a minimized footprint and lightweight construction for tool-free installation;
3. Nylon 66 valve body paired with Class B insulation solenoid coil and VITON® seals, ensuring broad media compatibility;
4. IP65-rated coil protection and direct lead wire termination for enhanced durability in harsh environments.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2P
AirTAC 2P025-06-A 2-Position Fluid Control Valve Specifications
- Model: 2P025-06-A
- Type: 5-port 2-position (5/2-way) pneumatic valve
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 210g ±5g (including coil)
- Dimensions: 50mm(L) × 40mm(W) × 72mm(H)
- Port thread depth: 9.5mm (all ports)
- Seal material: HNBR rubber (high nitrile for oil resistance)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Response time: ≤15ms (at 0.5MPa)
- Flow rate: 850 l/min (ANR)
- Protection rating: IP67 (coil), IP40 (valve body)
- Service life: ≥10 million cycles (under rated conditions)
High-flow directional control valve with metal piston construction for precise actuator control. Features integrated silencer and manual override button. Optimized for high-cycle applications requiring rapid directional switching. Requires ISO 8573-1 class 3 or cleaner compressed air (max 40μm particles).
- Automated production line cylinder control
- Textile machinery air circuit switching
- Semiconductor handling equipment
- Plastic injection molding ejector systems
- Automotive tire assembly machines
Installation note:
Lubricate pilot valve with ISO VG32 turbine oil if using non-lubricated air.
Maintain ≥15mm clearance below valve for exhaust airflow. Avoid mounting
near high-vibration sources (＞50Hz).
| Property | Property Value |
|---|---|
| sku | 2P025-06-A |
| Port Size | G1/8 |
| Flow Aperture | <2.5 mm> |
| Coil Voltage | AC220V |
