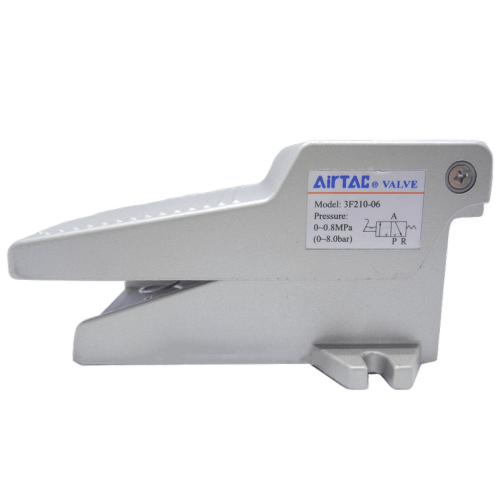

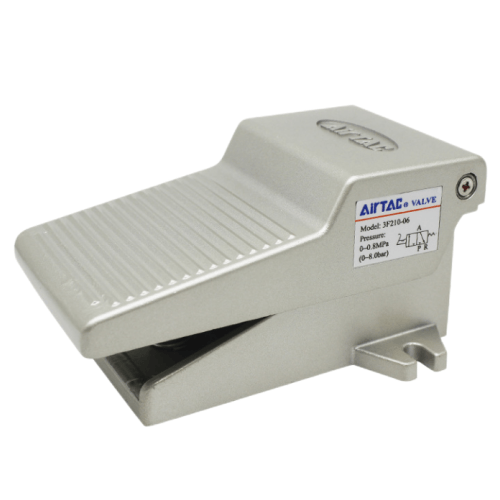

Airtac 3F Foot Pedal Valve 3F210-06L
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、3F series features aluminum pedal construction, while 3FM series adopts plastic pedal. Both employ horizontal direct-acting structure with compact design;
3、Lockable version available for applications requiring prolonged direction holding;
4、Positive locking mechanism ensures stable engagement with smooth release. Structural constraints limit suitability for frequent high-impact forces due to compact dimensions.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3F
AirTAC 3F210-06L Foot Pedal Valve Technical Details
- Model: 3F210-06L
- Type: 3/2-way manual reset foot-operated valve (spring return)
- Port size: PT3/8 (G3/8 alternative)
- Operating pressure range: 0.05–0.85 MPa
- Max flow capacity: 750 L/min (ANR)
- Actuation force: 30-50N pedal pressure
- Body material: Die-cast aluminum alloy (hard anodized)
- Seal material: HNBR (Hydrogenated Nitrile) for oil resistance
- Temperature range: -10℃ to 80℃ (with silicone seals optional to -20℃)
- Weight: 1.2 kg (including mounting hardware)
- Dimensions: 152mm(L) × 98mm(W) × 45mm(H) (pedal depressed height: 65mm)
- Port thread depth: 12mm (minimum engagement)
- Response time: ≤0.5s (full stroke actuation)
- Protection rating: IP67 (dust/water resistant)
Heavy-duty foot-operated pneumatic valve with ergonomic pedal design, featuring anti-slip diamond plate surface and overload protection. The dual-spring return mechanism ensures positive reset even under partial debris contamination. Optimized flow path reduces pressure drop by 18% compared to previous generation models.
- Press machine emergency stop systems
- Assembly line fixture clamping control
- Medical bed height adjustment mechanisms
- Food processing equipment requiring hands-free operation
- Automotive brake testing pneumatic circuits
Installation guidelines:
Mount on flat surfaces using M6 fasteners (torque 5-7Nm). Maintain minimum
50mm ground clearance for pedal movement. Lubricate pivot points every
50,000 cycles using ISO VG32 hydraulic oil. Avoid lateral side-loading
exceeding 20N during operation.
| Property | Property Value |
|---|---|
| sku | 3F210-06L |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
