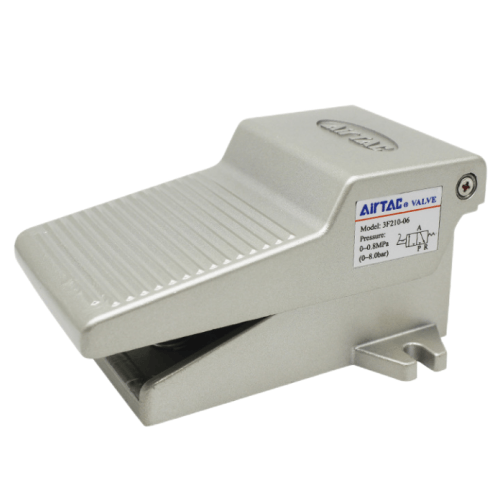

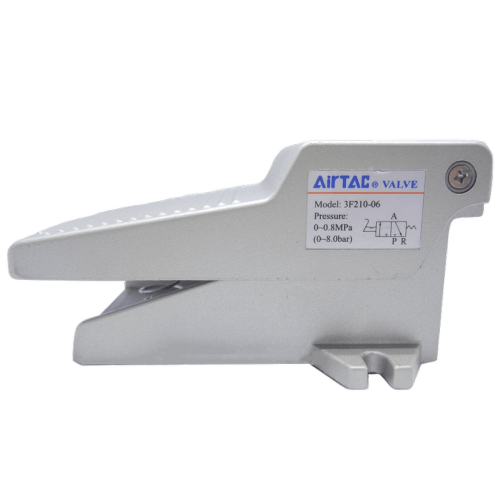

Airtac 3F Foot Pedal Valve 3F210-06L-NC
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、3F series features aluminum pedal construction, while 3FM series adopts plastic pedal. Both employ horizontal direct-acting structure with compact design;
3、Lockable version available for applications requiring prolonged direction holding;
4、Positive locking mechanism ensures stable engagement with smooth release. Structural constraints limit suitability for frequent high-impact forces due to compact dimensions.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3F
AirTAC 3F210-06L-NC Foot Pedal Valve Technical Details
- Model: 3F210-06L-NC
- Type: 3/2-way normally closed mechanical foot-operated valve
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Maximum flow rate: 750 L/min (Cv=0.52)
- Actuation force: 30-50N pedal pressure
- Body material: Aluminum alloy with hard anodized finish
- Seal material: Oil-resistant NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃ (operating fluid)
- Weight: 320g ±5g (including mounting hardware)
- Dimensions: 98mm(L) × 82mm(W) × 38mm(H)
- Mounting pattern: 60mm × 40mm standard foot pedal base
- Pedal stroke: 15mm with 3-stage tactile feedback
- Protection rating: IP54 (dust protected, water splashed)
Heavy-duty foot-operated pneumatic valve featuring anti-slip diamond plate pedal surface and corrosion-resistant construction. The dual-spring return mechanism ensures positive shutoff even with partial pedal engagement. Includes built-in silencer (35dBA max) and optional pedal lock accessory (sold separately). Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Medical bed height adjustment controls
- Plastic injection molding machine safety releases
- Assembly line fixture clamping systems
- Industrial sewing machine thread cutters
- Packaging machine emergency stops
- Food processing equipment requiring hands-free operation
Maintenance protocol:
Lubricate pivot points with ISO VG32 hydraulic oil every 50,000 cycles.
Use thread sealant (PTFE tape recommended) during port installation.
Avoid lateral side-loading exceeding 20N on pedal arm.
| Property | Property Value |
|---|---|
| sku | 3F210-06L-NC |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
