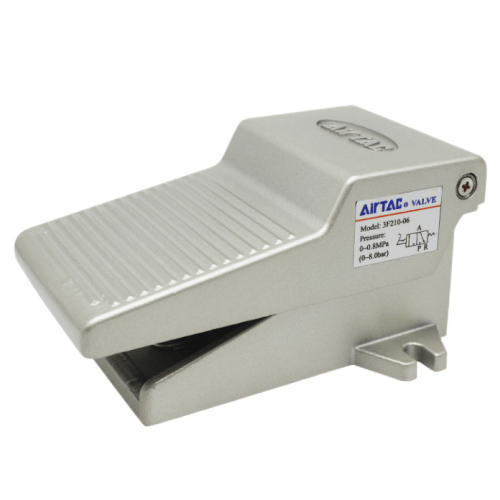

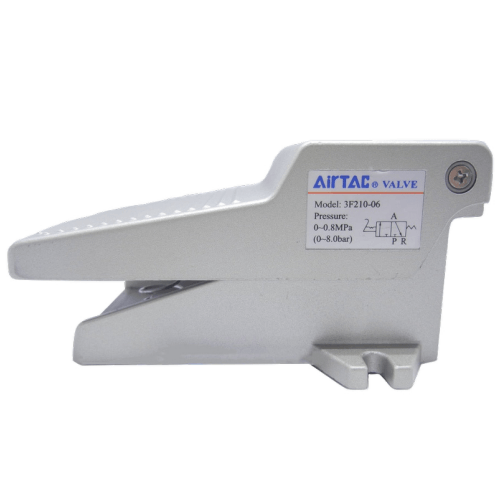

Airtac 3F Foot Pedal Valve 3F210-08
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、3F series features aluminum pedal construction, while 3FM series adopts plastic pedal. Both employ horizontal direct-acting structure with compact design;
3、Lockable version available for applications requiring prolonged direction holding;
4、Positive locking mechanism ensures stable engagement with smooth release. Structural constraints limit suitability for frequent high-impact forces due to compact dimensions.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3F
AirTAC 3F210-08 Foot Pedal Valve Technical Specifications
- Model: 3F210-08
- Type: 3/2-way manual foot-operated valve (spring return)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–1.0 MPa
- Actuation force: 30-50N pedal pressure
- Flow capacity: 800 L/min (ANR)
- Weight: 850g ±2%
- Dimensions: 155mm(L) × 95mm(W) × 45mm(H)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: HNBR rubber (oil & heat resistant)
- Temperature range: -10℃ to 80℃
- Protection rating: IP54 (splash & dust resistant)
- Mounting: 4×M5 threaded holes (10mm depth)
Heavy-duty foot control valve with ergonomic pedal design, featuring anti-slip diamond plate surface and overload protection. The dual-stage sealing system prevents leakage during high-cycle operations. Requires 5-40μm filtered compressed air with max 1mg/m³ oil content.
- Press machine emergency stop systems
- Assembly line fixture clamping control
- Medical bed height adjustment mechanisms
- Food processing equipment activation
- Automotive brake testing rigs
Operation guidance:
Apply vertical foot pressure on pedal center. For continuous use,
maintain ≤300 cycles/hour with 2-minute cooling intervals every
30 minutes. Lubricate pivot points every 500,000 cycles.
| Property | Property Value |
|---|---|
| sku | 3F210-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
