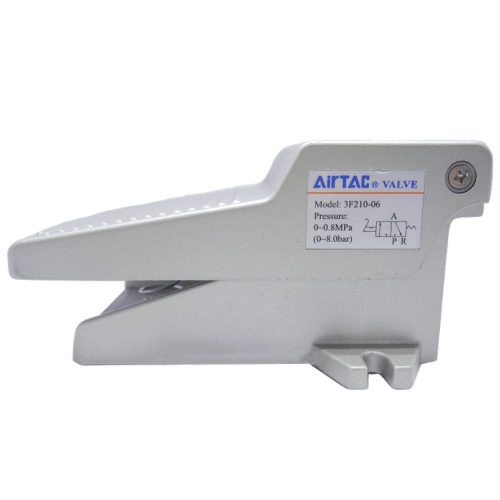

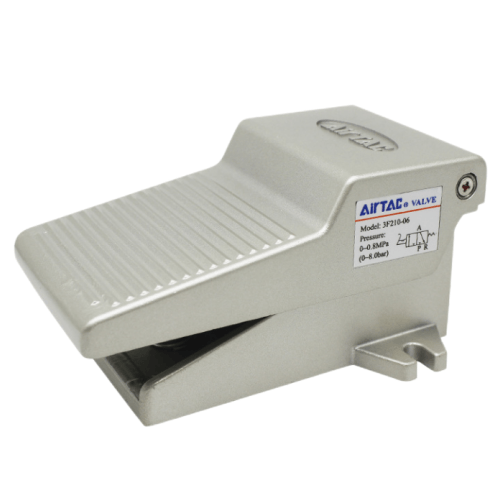

Airtac 3F Foot Pedal Valve 3F21008L
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、3F series features aluminum pedal construction, while 3FM series adopts plastic pedal. Both employ horizontal direct-acting structure with compact design;
3、Lockable version available for applications requiring prolonged direction holding;
4、Positive locking mechanism ensures stable engagement with smooth release. Structural constraints limit suitability for frequent high-impact forces due to compact dimensions.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3F
AirTAC 3F21008L Foot Pedal Valve Technical Details
- Full model designation: 3F21008L (L indicates lever type actuator)
- Valve type: 3/2-way normally closed manual override
- Port configuration: 1/4" BSPP female threads (G1/4)
- Operating pressure range: 0.05-0.9 MPa (7-130 PSI)
- Maximum flow rate: 850 L/min (Cv=1.2)
- Actuation force: 30-50N pedal pressure required
- Body material: Die-cast aluminum alloy with chromate treatment
- Seal material: High-grade NBR (Nitrile) compound
- Temperature tolerance: -20℃ to 80℃ (continuous operation)
- Weight: 1.25 kg ±5% (including mounting hardware)
- Dimensions: 145mm(L) × 85mm(W) × 45mm(H) (footprint without pedal depressed)
- Port positions: 1(P) - inlet, 2(A) - outlet, 3(R) - exhaust
- Response time: ≤0.5s full actuation cycle
- Mounting: 4×M5 threaded holes with 60mm×40mm pattern
Heavy-duty foot-operated pneumatic valve featuring ergonomic pedal design with non-slip surface texture. The 3F21008L combines mechanical advantage linkage with precision-machined brass poppet for smooth operation under high cyclic loads. Includes built-in flow adjustment screw (2-8 L/sec range) and maintenance access port.
- Stamping press emergency air release systems
- Assembly line fixture clamping control
- Textile machinery thread tension regulation
- Food processing equipment activation
- Automotive brake testing rigs
- Requires 2mm free pedal travel for full valve stroke
- Optimal mounting height: 150-200mm from floor level
- Use M5x12mm stainless steel screws for vibration resistance
- Lubricate pivot points with ISO VG32 hydraulic oil monthly
Critical: Install downstream filter (5μm) to prevent poppet seat damage.
Avoid side-loading the pedal - maximum lateral force 15N.
| Property | Property Value |
|---|---|
| sku | 3F21008L |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
