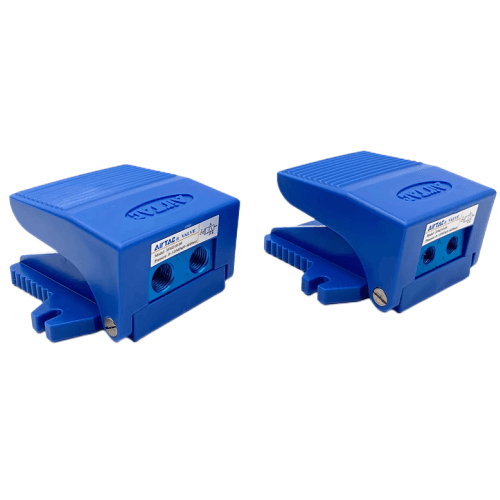

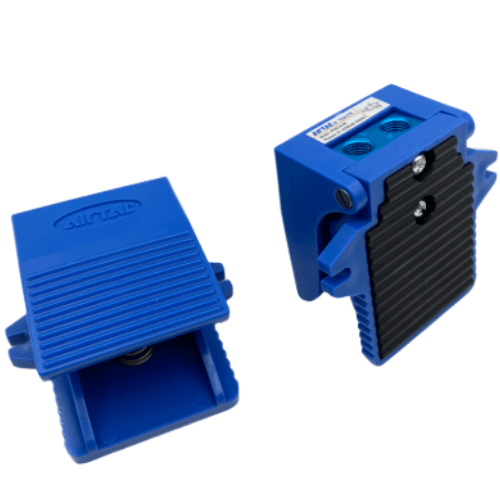

Airtac 3FM Foot Pedal Valve 3FM210-08
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. 3F Series features aluminum pedal while 3FM Series adopts polymeric pedal, both employing direct-acting horizontal structure with compact design.
3. Optional self-locking variant available for extended direction-holding duration requirements.
4. Patented locking mechanism ensures high operational stability and reliability, enabling light-duty release action. Note: Not recommended for frequent high-impact applications due to structural constraints.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3FM
AirTAC 3FM210-08 Foot Pedal Valve Technical Specifications
- Model: 3FM210-08
- Type: Mechanical foot-operated 3-way valve (Normally closed)
- Port configuration: 1/4" (PT) NPT female threads
- Operating pressure range: 0.2–1.0 MPa (29–145 PSI)
- Max flow capacity: 850 L/min (Cv=1.2)
- Actuation force: 50-70N pedal pressure
- Body material: Die-cast aluminum alloy with hard anodized finish
- Seal material: High-grade HNBR rubber (-20℃ to 120℃)
- Weight: 1.8 kg (3.97 lbs) with mounting hardware
- Dimensions: 178mm(L) × 140mm(W) × 65mm(H)
- Pedal travel: 25±2mm stroke distance
- Return mechanism: Double torsion spring system
- Mounting pattern: 125×85mm standardized bolt holes
- Surface treatment: Corrosion-resistant powder coating (RAL 9010)
Heavy-duty industrial foot valve featuring ergonomic pedal design with anti-slip diamond plate surface. The dual-spring return mechanism ensures positive shutoff and repeatable operation. Integrated debris shield prevents particulate ingress. Rated for 500,000+ cycles at maximum pressure.
- Press machine emergency stop systems
- Assembly line fixture clamping control
- Foundry equipment pneumatic activation
- Medical bed height adjustment mechanisms
- Food processing machinery requiring hands-free operation
Installation guidelines:
Mount on flat surfaces using M6×20mm bolts (not included).
Lubricate pivot points with ISO VG32 hydraulic oil monthly.
Maintain minimum 50mm clearance under pedal for full depression.
| Property | Property Value |
|---|---|
| sku | 3FM210-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
