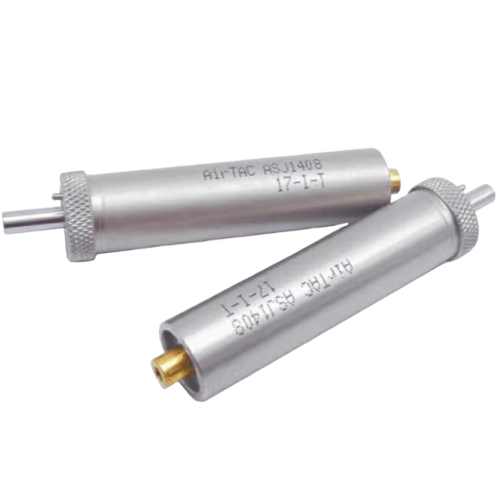

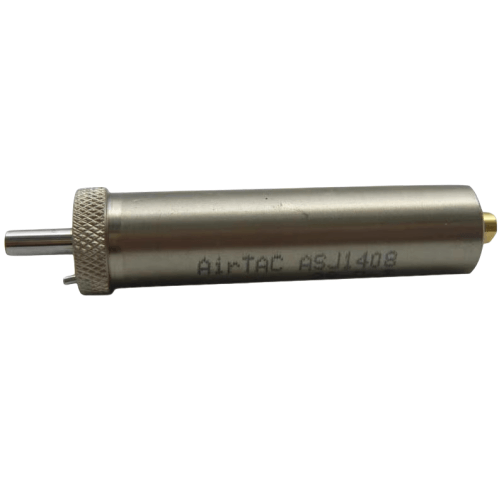

Airtac ASJ Hydraulic Shock Absorber ASJ1408
AirTAC ASJ1408 Hydraulic Shock Absorber Technical Details
- Model: ASJ1408
- Type: Adjustable oil hydraulic shock absorber
- Maximum absorbed energy: 14 J/cycle
- Stroke length: 25 mm
- Piston rod diameter: Ø28 mm
- Maximum impact velocity: 0.8 m/s
- Maximum frequency: 200 cycles/min
- Operating temperature: -20℃ to +80℃
- Installation orientation: Horizontal/Vertical (axial load only)
- Housing material: High-grade alloy steel with chrome plating
- Seal material: NBR (Nitrile) rubber
- Weight: 1.2 kg ±5%
- Dimensions: 135mm(L) × 60mm(W) × 60mm(H)
- Oil capacity: 30 ml (ISO VG32 recommended)
- Adjustment mechanism: 6-position rotary damping control
High-performance hydraulic buffer engineered for heavy-duty industrial applications requiring precise kinetic energy absorption. Features progressive damping characteristics with oil compensation chamber to prevent cavitation. The hexagon-shaped housing enables tool-free adjustment through 6 discrete damping levels (position 1=softest, 6=hardest).
- Robotic arm end effector impact absorption
- Stamping press over-travel protection
- Palletizer vertical axis deceleration
- Automated warehouse shuttle braking systems
- Injection molding machine ejector mechanisms
Installation guidelines:
Align buffer axis with moving mass trajectory within ±2° angular deviation.
Perform initial 50-cycles "break-in" operation at mid-damping setting (position 3).
Check oil leakage monthly during first year of operation. Not suitable for
side-load applications or environments with metal powder contamination.
| Property | Property Value |
|---|---|
| sku | ASJ1408 |
