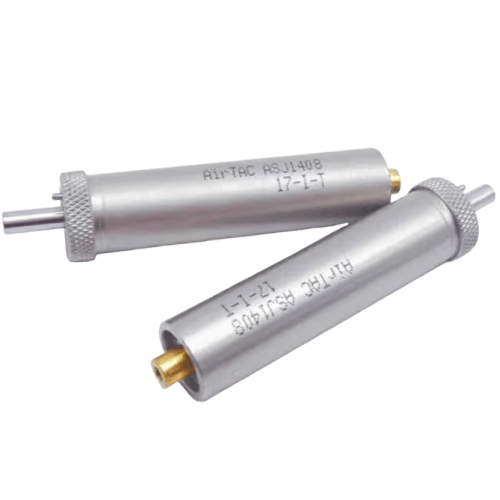

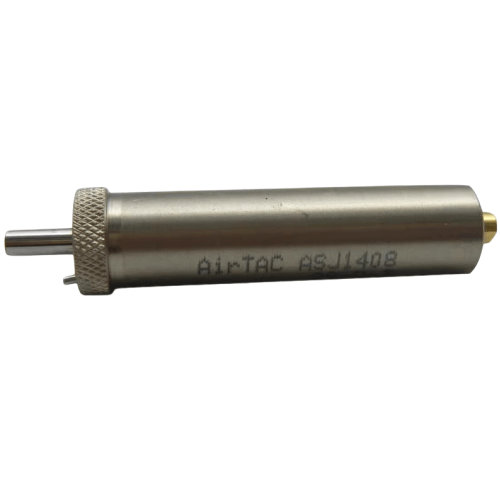

Airtac ASJ Hydraulic Shock Absorber ASJ2210
AirTAC ASJ2210 Hydraulic Shock Absorber Technical Details
- Model: ASJ2210
- Type: Adjustable oil hydraulic shock absorber
- Maximum impact energy: 1.5 N·m/cycle
- Maximum impact speed: 2.0 m/s
- Stroke: 10 mm (±1mm)
- Adjustment range: 20-100% energy absorption (8-position rotary control)
- Installation type: M10×1.25 male thread
- Operating temperature: -10℃ to 80℃
- Housing material: Aluminum alloy with hard anodized finish
- Piston rod material: Chrome-plated steel
- Oil type: ISO VG32 hydraulic oil
- Maximum impact force: 1,800 N
- Weight: 235 g ±5g
- Dimensions: 54mm(D) × 30mm(W) × 64mm(H)
- Cycle life: ≥1 million cycles (at rated load)
- Rebound coefficient: ≤15%
Precision-engineered hydraulic damper featuring progressive damping characteristics and maintenance-free operation. The 8-step adjustable mechanism allows fine-tuning of damping force through a rotating collar with positive click stops. Nickel-plated impact surface resists scoring and galling in high-cycle applications.
- Industrial robot end-effector shock absorption
- Packaging machine cam follower stabilization
- CNC tool changer positioning buffers
- Automated conveyor stop mechanisms
- Die casting machine ejection systems
Installation guidelines:
Mount perpendicular to impact direction using included locknut.
Allow minimum 3mm clearance around adjustment collar.
Perform 10-15 test cycles before final torque setting (12-15N·m).
Relubricate every 500,000 cycles using ISO VG32 oil.
| Property | Property Value |
|---|---|
| sku | ASJ2210 |
