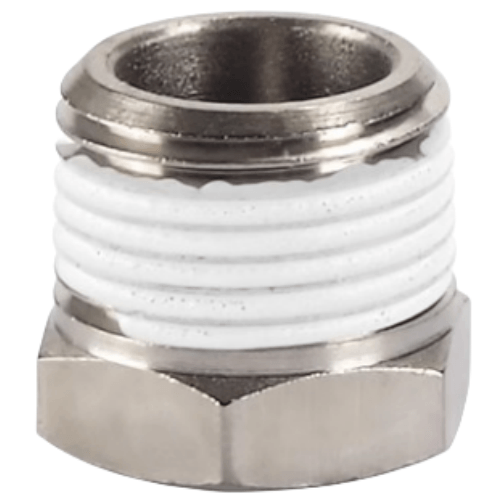

Airtac B52-BD Non-Ferrous Male-Female Thread Straight Connector B52-BD0102
AirTAC B52-BD0102 Copper-Free Straight Threaded Union Specifications
- Model: B52-BD0102
- Type: Female/Male Thread Straight Connector (Copper-Free)
- Thread Standard: Metric (M5×0.8 internal thread / M5×0.8 external thread)
- Material: Nickel-Plated Brass (Copper content ≤0.1%)
- Pressure Rating: 0.05–1.5 MPa
- Temperature Range: -20℃ to 80℃ (continuous use)
- Burst Pressure: ≥3.0 MPa
- Seal Type: Integrated O-ring (NBR material)
- Surface Treatment: Electroless Nickel Plating (5-8μm thickness)
- Weight: 12.5g ±0.3g
- Dimensions: 30mm(Length) × 10mm(Hex Width) × 8mm(Tube OD)
- Compliance: RoHS 2.0, REACH SVHC 223
Bi-directional pneumatic connector with anti-corrosion plating, designed for copper-sensitive environments. Features precision-machined threads with 360° sealing surface and 45° inverted flare for vibration resistance. The nickel layer provides ≥720h salt spray protection per ASTM B117.
- Semiconductor gas delivery systems
- Oxygen-enriched medical gas lines
- High-purity chemical transfer systems
- Food-grade pneumatic equipment
- Marine automation controls
Installation protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps recommended).
Torque limit: 1.2-1.5N·m. Avoid overtightening - final position
should align hex flats with system flow direction.
Leak test required after installation.
| Property | Property Value |
|---|---|
| sku | B52-BD0102 |
