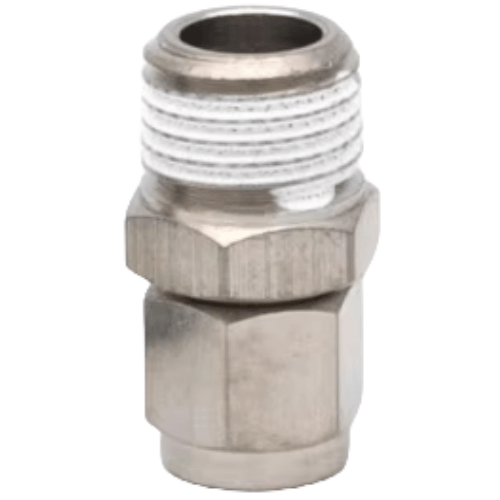

Airtac B52-BKC Copper-Free Lock Nut Straight Threaded Fitting B52-BKC0604-01
AirTAC B52-BKC0604-01 Copper-Free Locknut Straight Fitting Specifications
- Model: B52-BKC0604-01
- Type: Copper-free pneumatic straight connector with locknut
- Body material: Nickel-plated brass (copper-free surface treatment)
- Seal material: NBR (Nitrile rubber)
- Thread standard: M5×0.8 (male thread)
- Tube OD compatibility: Ø4mm (1/8")
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (continuous use)
- Proof pressure: 3.0 MPa
- Weight: 8.5g ±0.3g
- Dimensions: 22mm(L) × 12mm(W) × 12mm(H)
- Surface resistance: ≤1×10⁶Ω (anti-static design)
- Certification: RoHS compliant
Electroless nickel-plated connector specifically engineered for copper-sensitive environments. Features a double-locking mechanism with integrated O-ring and metal-to-metal sealing. The hexagonal body design allows 360° rotational adjustment after installation while maintaining seal integrity.
- Medical gas delivery systems (oxygen concentrators, ventilators)
- Semiconductor manufacturing equipment
- High-purity chemical transfer lines
- Food-grade pneumatic systems
- Laboratory analytical instruments
Installation protocol:
Apply thread sealant (PTFE tape recommended) only on male threads.
Tighten to 1.2-1.5 N·m torque using backup wrench on hex body.
Maximum 3 full rotations after hand-tight position.
| Property | Property Value |
|---|---|
| sku | B52-BKC0604-01 |
