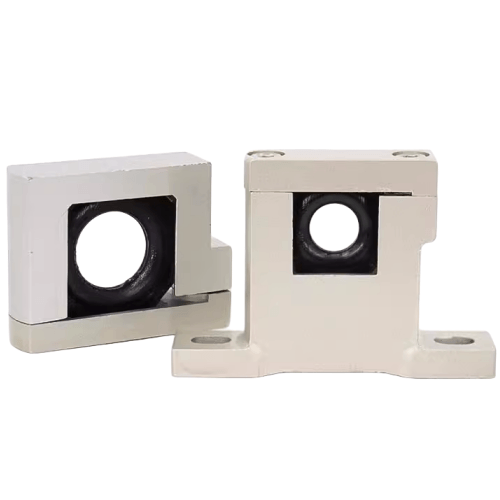

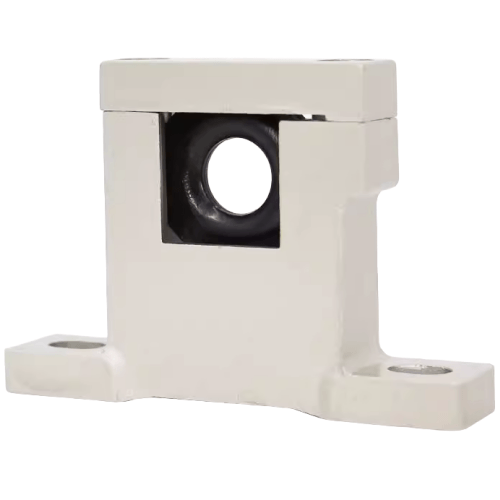

Airtac <B52-GA-P1 Copper-Free L-type Bracket Kit> B52-GA200L-P1
AirTAC B52-GA200L-P1 Copper-Free L-Bracket Assembly Specifications
- Full Model Number: B52-GA200L-P1
- Type: Copper-free anodized aluminum L-shaped mounting bracket
- Material: 6063-T5 aluminum alloy (copper content ≤0.1%)
- Total Length: 200mm (primary arm) + 60mm (secondary arm)
- Thickness: 12mm (base plate), 8mm (vertical plate)
- Slot Dimensions: 6mm width × 35mm adjustable travel
- Mounting Holes: 4×M6 threaded holes (ISO 4762 standard)
- Surface Treatment: Hard anodized (25-30μm thickness)
- Weight: 1.24kg ±2% (including all fasteners)
- Operating Temperature: -40℃ to 150℃ (continuous)
- Load Capacity: 180kg static / 75kg dynamic (axial)
- Vibration Resistance: 5-2000Hz, 15G acceleration
- Corrosion Rating: C5-M per ISO 12944
- Compatible Series: P1 series cylinders (32-100mm bore sizes)
- Certifications: RoHS 3, REACH SVHC, ISO 9001:2015
Heavy-duty corrosion-resistant bracket designed for copper-sensitive environments, featuring precision-machined slots for ±2.5° angular adjustment. Includes pre-installed stainless steel M6×16 hex socket bolts (A2-70 grade) with anti-vibration nylon inserts. Anodized surface prevents galvanic corrosion when used with aluminum actuators.
- Semiconductor manufacturing equipment (copper contamination control)
- Marine automation systems (saltwater corrosion resistance)
- Medical gas cylinder mounting (cleanroom compatible)
- Food processing pneumatic lines (FDA-compliant surface)
- High-vacuum chamber component mounting
| Property | Property Value |
|---|---|
| sku | B52-GA200L-P1 |
