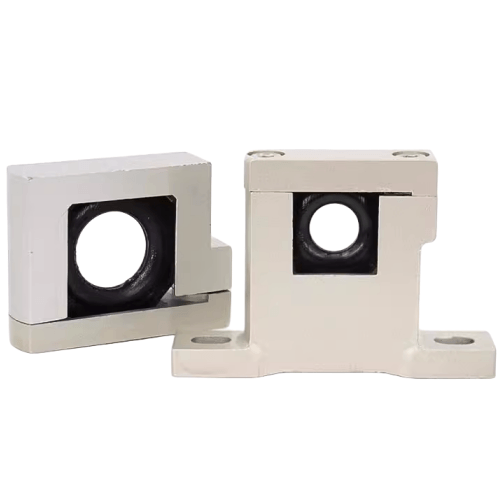

Airtac <B52-GA-P1 Copper-Free L-type Bracket Kit> B52-GA600U-P1
$16.25
Regular price
$23.75
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B52-GA600U-P1
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC B52-GA600U-P1 Copper-Free L-Bracket Assembly Specifications
- Full model designation: B52-GA600U-P1 (Complete assembly with fasteners)
- Material: Aluminum alloy 6063-T5 (Copper-free compliant)
- Surface treatment: Black anodized (12-15μm thickness)
- Primary dimensions: 600mm(L) × 50mm(W) × 50mm(H)
- Mounting base thickness: 8mm ±0.2mm
- Vertical plate thickness: 6mm ±0.15mm
- Slot dimensions: 6mm(width) × 22mm(length) × 4 slots
- Fastener specs: M6×12mm stainless steel hex bolts (A2-70 grade)
- Load capacity: 55kg static / 22kg dynamic (axial loading)
- Weight: 2.48kg ±3% (including hardware)
- Thermal tolerance: -40℃ to 120℃ (continuous operation)
- Corrosion resistance: 96hrs salt spray test passed
- Compatible rail: MISUMI HFSBC5-5050 series or equivalent
Heavy-duty L-shaped structural support bracket featuring copper-free construction for sensitive environments. Precision-machined with T-slot alignment system for multi-axis adjustability. Includes vibration-resistant flange nuts with nylon inserts for permanent installations.
Industrial Applications:
- Semiconductor FAB equipment mounting
- Medical sterilization chamber frameworks
- Food-grade conveyor line supports
- Lithium battery production line jigs
- Cleanroom robotics arm bases
Installation protocol:
Use torque wrench at 8.5-10N·m for bolt tightening. Apply Loctite 243
threadlocker on clean, oil-free threads. Allow 24hr cure time before load application.
Copper contamination control:
Mandatory for ISO Class 5+ cleanrooms. Requires quarterly inspection
for surface integrity using 10x magnification.
