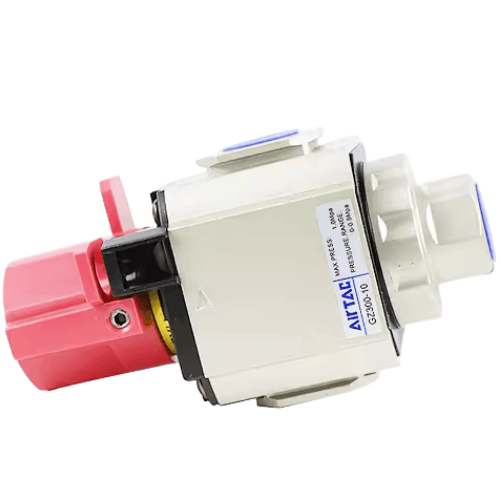

Airtac B52-GZ Non-Copper Shut-Off Valve B52-GZ40010J
$45.35
Regular price
$52.85
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B52-GZ40010J
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC B52-GZ Copper-Free Shutoff Valve B52-GZ40010J Technical Specifications
- Model: B52-GZ40010J
- Type: Manual reset plunger-type shutoff valve (non-spring return)
- Port size: G1/8 (BSPP thread) / Optional NPT1/4
- Maximum operating pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Ambient temperature range: -5℃ to 60℃
- Fluid temperature range: 0℃ to 60℃
- Body material: Aluminum alloy ADC12 with nickel plating
- Seal material: HNBR rubber (copper-free compound)
- Flow capacity: 350 NL/min (ANR)
- Weight: 240g ±5%
- Dimensions: 52mm(L) × 38mm(W) × 85mm(H)
- Port alignment: Axial straight-through design
- Actuation force: ≤20N lever operation
- Leakage rate: <10 bubbles/min (ISO 6952 test standard)
Emergency shutoff valve featuring copper-free construction for semiconductor and medical applications. The through-port design minimizes pressure drop (ΔP <0.02MPa at max flow), with visual position indicator and positive-lock mechanism. Requires manual reset after emergency closure.
Industrial Applications:
- Ultra-clean compressed air lines in chip fabrication
- Emergency gas shutoff in analytical instruments
- Isolation valves for medical oxygen systems
- Process interruption in lithium battery production
- Pneumatic safety circuits in robotic workcells
Maintenance protocol:
Lubricate lever pivot quarterly with MIL-PRF-81322 grease.
Perform seal replacement every 50,000 cycles or 2 years.
Do not use silicone-based lubricants.
| Property | Property Value |
|---|---|
| sku | B52-GZ40010J |
