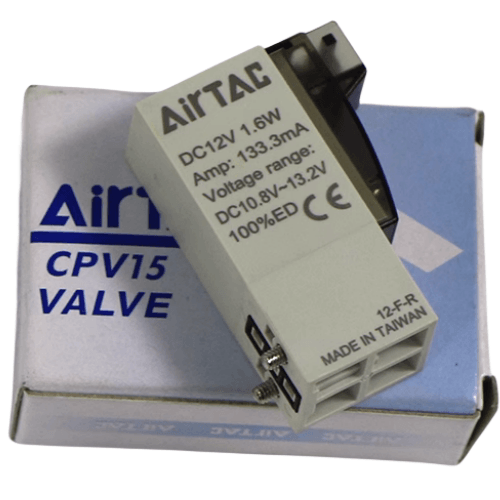

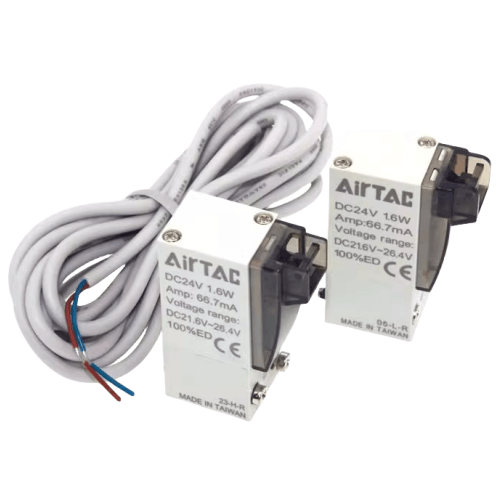

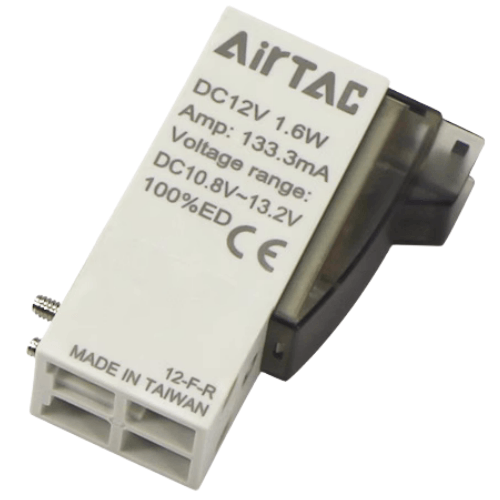

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15A
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A
AirTAC CPV15-E-F-R-C-B-A Miniature Solenoid Valve Technical Details
- Model Code Breakdown: CPV15A (Base) + E(Copper coil) + F(PTFE seal) + R(Single solenoid) + C(PT1/8 port) + B(Standard DIN connector) + A(Special version)
- Valve Type: 3/2-way normally closed (direct-acting)
- Port Thread: PT1/8 (G1/8 optional)
- Operating Pressure Range: 0.05-1.0 MPa (14.5-145 PSI)
- Voltage Variations: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow Capacity: 650 l/min (Cv=0.18) at 0.5 MPa
- Response Time: ≤15ms (energize), ≤20ms (de-energize)
- Weight: 180g ±5g (without connector)
- Dimensions: 50mm(L) × 35mm(W) × 35mm(H) (excluding fittings)
- Seal Materials: PTFE (main seal) + FKM (secondary seals)
- Temperature Tolerance: -10℃ to 80℃ (14°F to 176°F)
- Power Consumption: 1.6W (DC), 2.5VA (AC)
- Protection Class: IP67 (dustproof & temporary immersion)
- Electrical Connection: 3-pin DIN43650 Form A
- Service Life: ≥10 million cycles (at rated conditions)
Ultra-compact electromagnetic valve featuring military-grade epoxy encapsulation for vibration resistance. The dual-seal PTFE+FKM construction enables compatibility with compressed air, vacuum systems, and inert gases. Optimized flow path design reduces pressure drop by 22% compared to previous generation models.
- Robotic end-effector tooling (grippers, suction cups)
- Precision pneumatic dosing systems in semiconductor manufacturing
- Mobile hydraulic control units for agricultural drones
- Sterile environment equipment (food & pharma production lines)
- Battery-powered automated guided vehicles (AGVs)
Installation Best Practices:
Requires ISO 8573-1 Class 3 air quality (max 5mg/m³ oil content).
For horizontal mounting, use anti-vibration brackets when
operating in environments exceeding 1.5G vibration acceleration.
Allow 15-minute burn-in period before critical applications.
| Property | Property Value |
|---|---|
| sku | CPV15A |
| Standard Voltage | AC220V |
| Valve Body Width | <15mm> |
