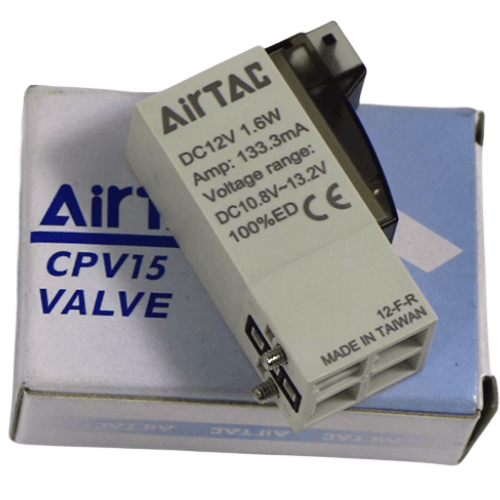

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15AR
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A

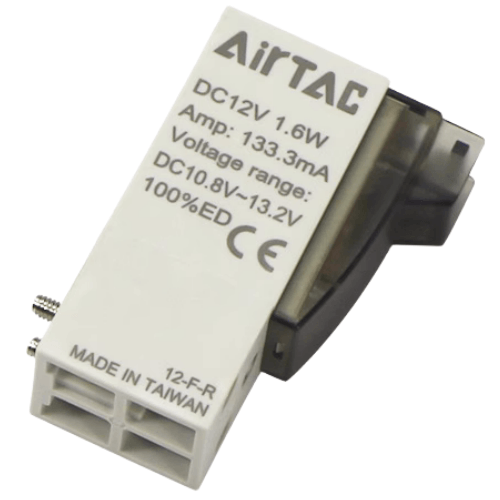

AirTAC CPV15-E-F-R-C-B-A Micro Solenoid Valve (CPV15AR) Specifications
- Full model code: CPV15-E-F-R-C-B-A (Standard designation: CPV15AR)
- Valve type: 5/2-way mono-stable (single solenoid)
- Operation type: Internal pilot operated
- Port configuration: G1/8 (ISO228/1 standard)
- Effective sectional area: 3.8 mm² (Cv≈0.21)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)

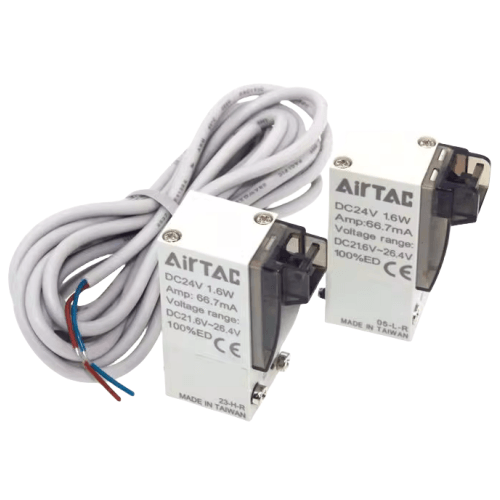

- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155°C)
- Response time: ≤15ms (energized), ≤20ms (de-energized)
- Ambient temperature: -5℃ to 60℃ (non-freezing)
- Weight: 195g ±5g (including coil)
- Dimensions: 55mm(L) × 34mm(W) × 60mm(H) (excluding connectors)
- Seal materials: NBR (standard), optional Viton for high temp (up to 120℃)
- Power consumption: 1.6W (DC models), 4.5VA (AC models)
- Protection rating: IP67 (coil), IP40 (valve body)
- Port thread depth: 9mm (minimum engagement required)
Ultra-compact 5/2-way pneumatic valve engineered for precision sequencing in space-constrained automation systems. Features copper-free aluminum alloy construction with anodized treatment for corrosion resistance. The direct-mount coil design enables quick replacement without disconnecting pneumatic lines. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.3 air quality.
- Multi-axis pneumatic gripper sequencing in robotics
- PCB handling equipment vacuum/pressure switching
- Medical device sterilization chamber controls
- Textile machinery thread tension adjustment systems
- Semiconductor wafer processing tools
Installation protocol:
Mount on flat surface with M4 screws (max torque 1.2N·m). Maintain minimum
15mm clearance below valve for exhaust flow. Use shock absorbers in
high-vibration environments. Perform monthly manual cycling during maintenance.
| Property | Property Value |
|---|---|
| sku | CPV15AR |
| Standard Voltage | AC220V |
| Valve Body Width | <15mm> |
