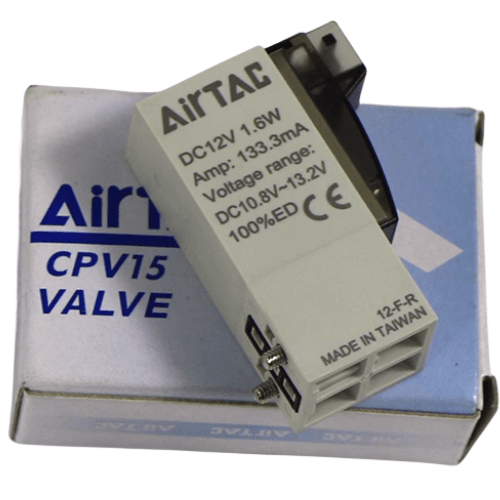

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15B
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A

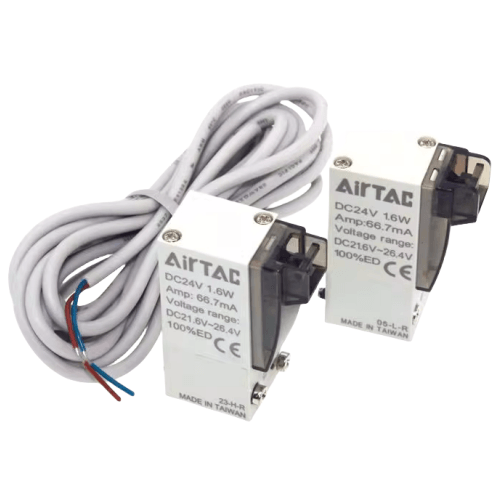

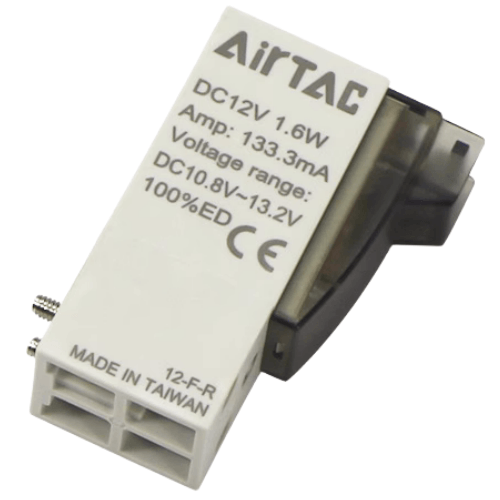

AirTAC CPV15-E-F-R-C-B-A Miniature Solenoid Valve (CPV15B Series)
- Full model code: CPV15-E-F-R-C-B-A
- Basic model: CPV15B
- Valve type: 5/2-way monostable (single solenoid)
- Port configuration: M5 threaded (standard) or NPT1/8 optional
- Effective bore diameter: Ø1.8mm
- Operating pressure range: 0.1–0.7 MPa (14.5–101.5 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil power rating: 1.8W (DC), 2.2VA (AC)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Seal material options: NBR (-20℃ to 80℃) or FKM (-10℃ to 150℃)
- Ambient temperature limits: -20℃ to 60℃ (with NBR seals)
- Protection class: IP67 (dustproof and waterproof)
- Weight: 180g ±5% (with coil)
- Dimensions: 50mm(L) × 30mm(W) × 60mm(H) (excluding connectors)
- Port-to-port spacing: 15mm (center alignment)
- Manual override: Optional slide-type actuator
Ultra-compact 5/2-way pneumatic valve optimized for precision control in space-constrained applications. Features corrosion-resistant anodized aluminum body with stainless steel core components. The low-hysteresis design ensures consistent flow rates (0.8–120 L/min) across pressure variations. Requires 5μm filtered dry air and regular lubrication (ISO VG32 equivalent).
- Medical diagnostic equipment pneumatic circuits
- Semiconductor wafer handling robots
- Laboratory analytical instrument valve clusters
- Compact packaging machine indexing systems
- Drone-mounted pneumatic sampling devices
Installation guidelines:
Mount with vibration-damping gaskets in high-shock environments.
Maintain minimum 15mm clearance from adjacent components for heat dissipation.
Use copper-free anti-seize compound on threaded ports.
Critical note:
Not compatible with phosphate ester-based lubricants.
Always install downstream moisture trap when operating below dew point.
| Property | Property Value |
|---|---|
| sku | CPV15B |
| Standard Voltage | DC24V |
| Valve Body Width | <15mm> |
