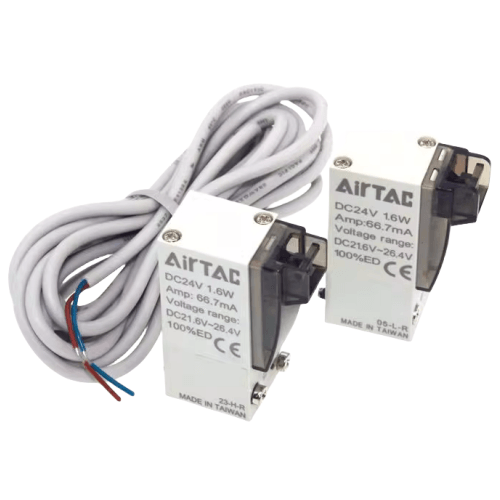

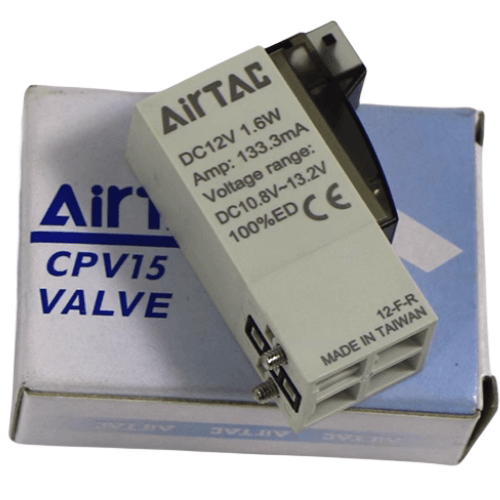

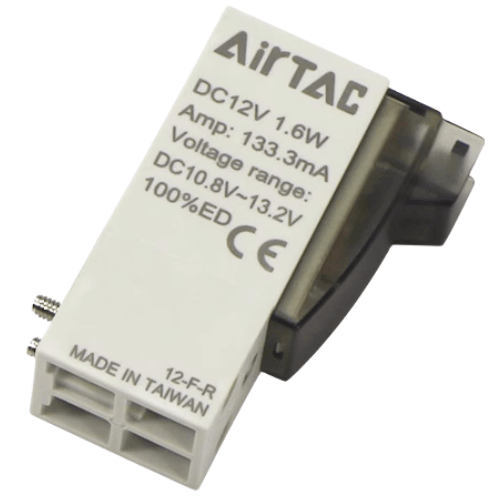

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15BR
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A
AirTAC CPV15-E-F-R-C-B-A Miniature Solenoid Valve (CPV15BR) Specifications
- Full Model Code: CPV15-E-F-R-C-B-A (Standard variant: CPV15BR)
- Valve Type: 5/2-way monostable (single solenoid)
- Port Configuration: G1/8 (ISO228/1 standard)
- Operating Pressure: 0.1–1.0 MPa (14.5–145 PSI)
- Voltage Variations: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow Capacity: 750 l/min (ANR) at 0.5 MPa
- Response Time: ≤15ms (energized), ≤20ms (de-energized)
- Weight: 285g ±5g (with coil)
- Dimensions: 58mm(L) × 38mm(W) × 76mm(H) (excluding connectors)
- Seal Material: Heat-resistant NBR (-20℃ to 120℃)
- Ambient Temperature: -5℃ to 60℃ (with icing prohibited)
- Protection Class: IP67 (dust-tight & temporary immersion protection)
- Electrical Connection: DIN43650 Form A (standard)
- Housing Material: Reinforced PBT with UL94 V-0 rating
Ultra-compact five-port valve featuring low power consumption (2.2W max) and manual override capability. Engineered for high-cycle applications with double-shielded coil for EMI resistance. Requires ISO 8573-1 class 3 compressed air (max 5mg/m³ oil content). Compatible with vacuum applications when paired with optional silencer.
- Robotic end-effector tool changers
- Precision pneumatic dosing systems
- Semiconductor wafer handling equipment
- Textile machinery thread control
- Electric vehicle battery cooling systems
Mounting Guidelines:
For optimal performance, maintain 15mm clearance below valve for heat dissipation.
Use vibration-damping brackets in mobile applications. Lubricate spool monthly in
high-cycling (>500k operations/month) environments.
| Property | Property Value |
|---|---|
| sku | CPV15BR |
| Standard Voltage | DC24V |
| Valve Body Width | <15mm> |
