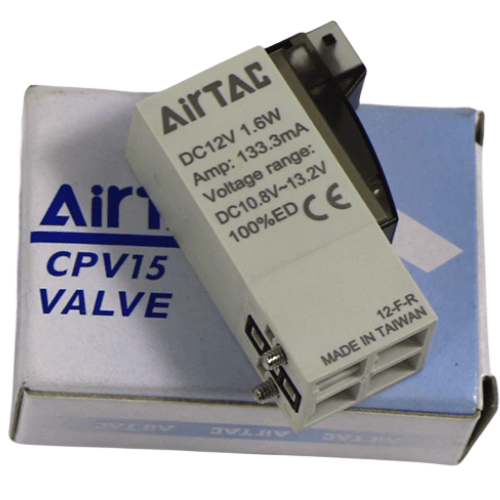

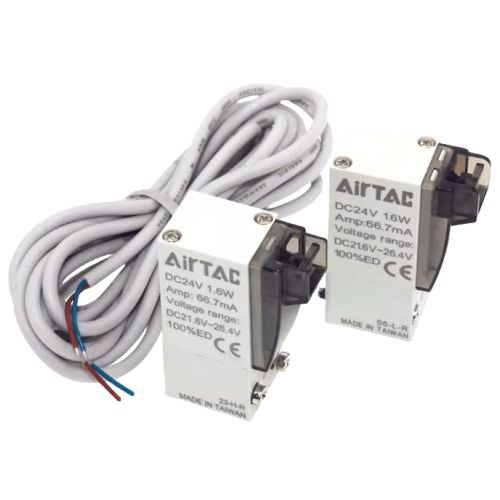

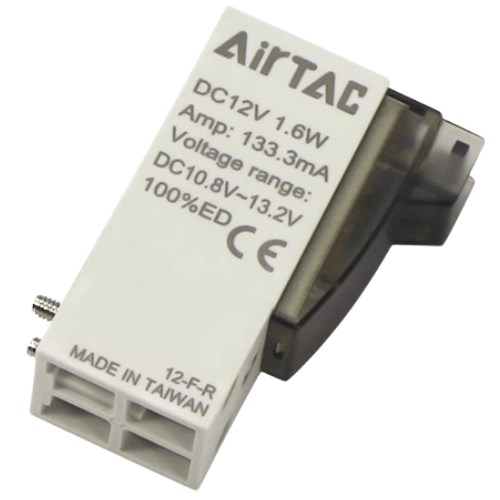

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15C
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A
AirTAC CPV15-E-F-R-C-B-A Miniature Solenoid Valve Specifications
- Full model code: CPV15C-E-F-R-C-B-A
- Type: 5/2-way monostable (spring return)
- Port configuration: 5 ports (P, A, B, EA, EB) / 2 positions
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow coefficient (Cv): 0.8
- Seal material: NBR (Nitrile) standard, optional FKM (Viton)
- Ambient temperature: -5℃ to 60℃ (with NBR seals)
- Fluid temperature: 0℃ to 60℃
- Protection rating: IP67 (coil), IP40 (valve body)
- Electrical connection: DIN43650 Form A (standard)
- Weight: 180g ±5g
- Dimensions: 40mm(L) × 25mm(W) × 55mm(H)
Ultra-compact 5/2-way pneumatic valve featuring double electromagnetic control and manual override capability. The CPV15C series employs a metal piston design with precision-machined guide surfaces for ≤0.1mm internal leakage. Special shock-resistant construction withstands 10G vibration (10-55Hz). Requires ISO 8573-1:2010 Class 4 compressed air (max 5mg/m³ oil content).
- Multi-position pneumatic actuators in semiconductor wafer handling robots
- Precision airflow switching in medical ventilator safety circuits
- Compact automation cells with ≤150ms cycle times
- Mobile hydraulic systems requiring explosion-proof coil options
- Cleanroom-compatible analytical instruments (optional PTFE seals)
Installation protocol:
Mount with M3 screws (max torque 0.6N·m). Maintain ≥20mm clearance from
high-frequency devices. For horizontal mounting, install condensate drain
downward. Lubricate with ISO VG32 turbine oil if used in low-cycle applications.
