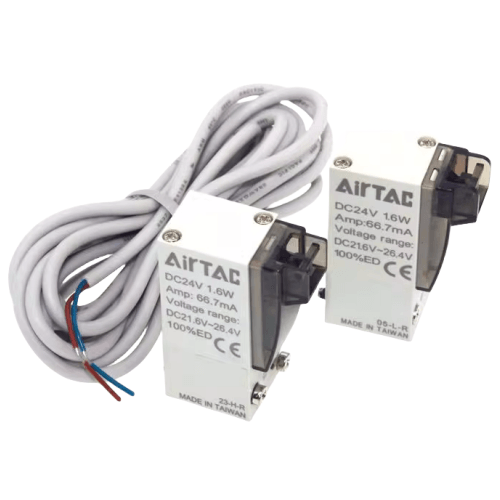

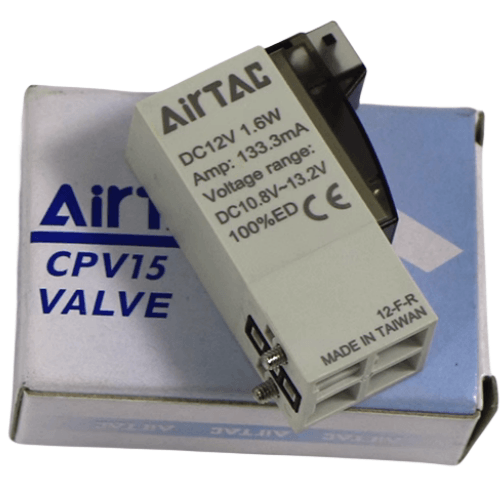

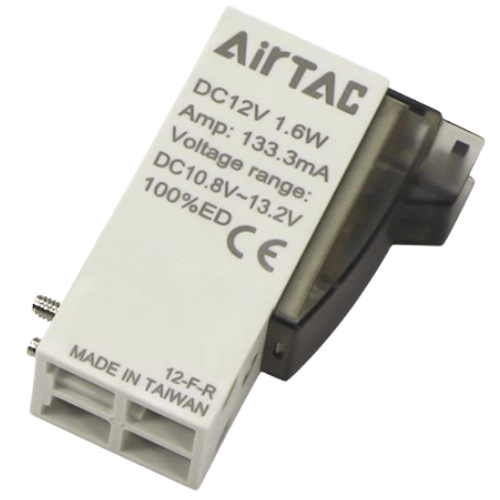

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15CR
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A
AirTAC CPV15-E-F-R-C-B-A Micro Solenoid Valve (CPV15CR) Specifications
- Full Model Code: CPV15-E-F-R-C-B-A (Standard designation: CPV15CR)
- Valve Type: 5/2-way monostable (single solenoid)
- Port Configuration: M5 threaded ports (ISO 228/1 standard)
- Effective Sectional Area: 1.6 mm²
- Operating Pressure Range: 0.15–0.7 MPa (21.7–101.5 PSI)
- Voltage Variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil Insulation: Class F (155°C thermal rating)
- Response Time: ≤15ms (at 0.5MPa)
- Seal Material: Heat-resistant NBR (Nitrile) with PTFE sliding surfaces
- Ambient Temperature Range: -5℃ to 60℃ (with anti-freeze measures below 0℃)
- Protection Rating: IP67 (dust-tight & temporary immersion protected)
- Weight: 85g ±2g (excluding connectors)
- Dimensions: 54mm(L) × 20mm(W) × 34mm(H) (port axis direction = length)
- Port Thread Depth: 8mm (maximum engagement)
- Expected Lifespan: 50 million cycles (under rated conditions)
Ultra-compact 5/2-way pneumatic valve engineered for high-density valve manifolds. Features low power consumption (1.2W typical) with dual-chamber pilot structure for reliable switching. The aluminum alloy body with hard anodizing resists chemical corrosion in harsh environments. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3 air quality.
- PCB handling robots in electronics assembly
- Micro-pneumatic circuits in semiconductor wafer handling
- Dental chair positioning systems
- High-speed sorting mechanisms (≤5Hz cycling)
- Compact valve clusters in automotive test equipment
Installation Protocol:
Mount using M3 screws with 0.3-0.5Nm torque. Maintain ≥5mm spacing between adjacent valves for heat dissipation.
Use shielded cables (max 30m length) for EMI-sensitive environments. Perform monthly manual override tests.
| Property | Property Value |
|---|---|
| sku | CPV15CR |
| Standard Voltage | AC 110V |
| Valve Body Width | <15mm> |
