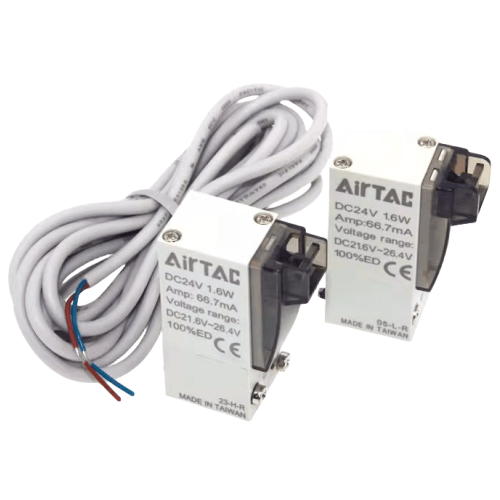

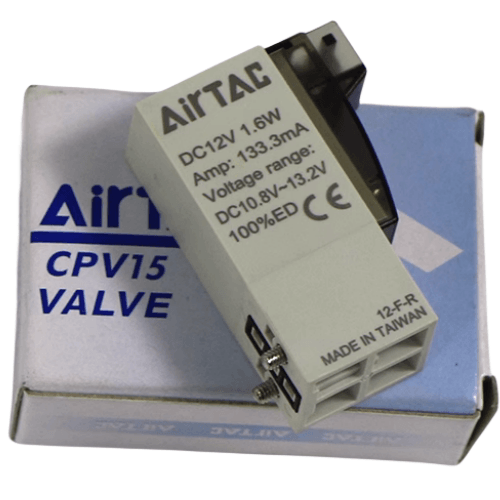

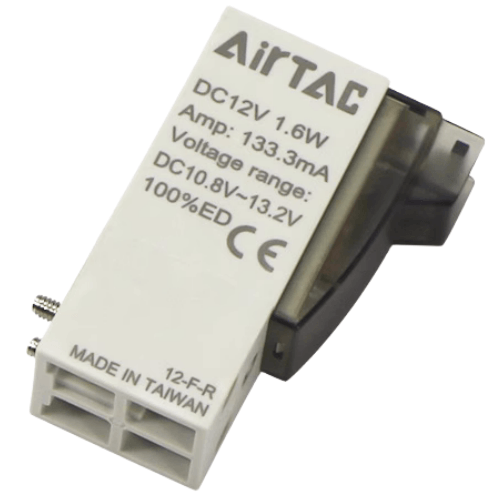

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15E
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A
AirTAC CPV15-E-F-R-C-B-A Miniature Solenoid Valve Technical Details
- Full model code: CPV15-E-F-R-C-B-A (CPV15E series)
- Valve type: 5/2-way monostable (single solenoid)
- Port configuration: M5 threaded (ISO15407-1 standard)
- Effective sectional area: 1.8mm²
- Operating pressure range: 0.05-0.8 MPa (7-116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155°C)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Seal material: Heat-resistant NBR (Nitrile) - Optional FKM (Viton) for high temp
- Ambient temperature: -5℃ to 60℃ (with NBR), -5℃ to 80℃ (with FKM)
- Weight: 180g ±5% (with coil)
- Dimensions: 52mm(L) × 22mm(W) × 45mm(H) (excluding connectors)
- Port thread depth: 7mm (maximum engagement)
- Power consumption: 1.6W (DC models), 2.5VA (AC models)
- Protection rating: IP67 (coil), IP40 (valve body)
- Cycle rate: ≤5Hz (300 cycles/minute)
Ultra-compact 5/2-way valve optimized for space-critical pneumatic systems requiring precise directional control. Features a manual override button for system debugging and failsafe spring return. The anodized aluminum body ensures EMI/RFI shielding compliance. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.2 air quality.
- PCB handling robots in electronics assembly
- Micro-pneumatic grippers in pick-and-place systems
- Dental chair pneumatic controls
- Semiconductor wafer processing equipment
- Portable analytical instruments
Installation guidelines:
Mount in vibration-free environment using M3 mounting screws (max torque 0.4Nm).
Maintain minimum 15mm clearance below valve for exhaust airflow.
Use copper-free anti-seize compound on threads.
Recommended maintenance: 20 million cycles or 5 years (whichever comes first).
| Property | Property Value |
|---|---|
| sku | CPV15E |
| Standard Voltage | AC24V |
| Valve Body Width | <15mm> |
