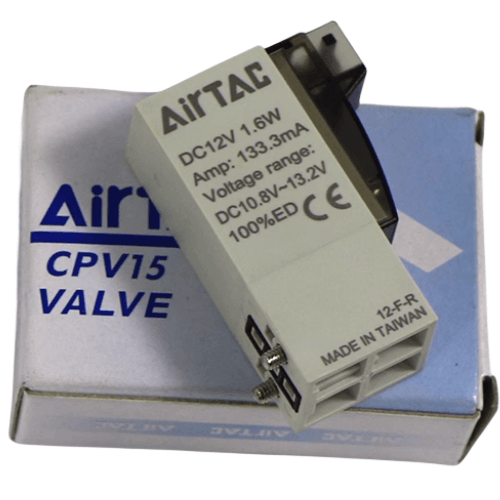

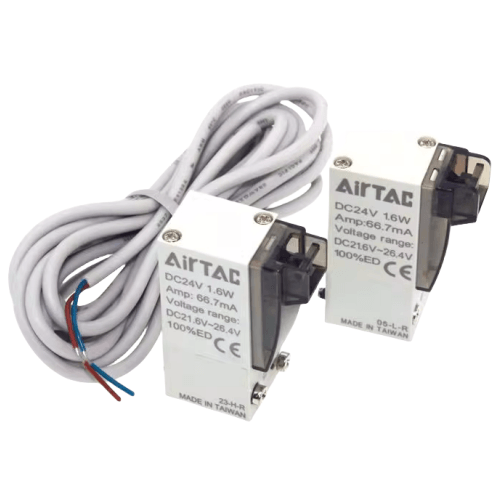

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15ER
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A
AirTAC CPV15-E-F-R-C-B-A Micro Solenoid Valve (CPV15ER Series) Specifications
- Full model code: CPV15-E-F-R-C-B-A (Standard variant: CPV15ER)
- Valve type: 5/2-way monostable (single solenoid)
- Port configuration: M5 (ISO 15407-1 compliant)
- Operating pressure range: 0.05–0.7 MPa (7–100 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.6W (DC), 2.8VA (AC)
- Response time: ≤15ms (energized), ≤20ms (de-energized)
- Flow capacity: 100 NL/min (Cv=0.15)
- Seal material: Heat-resistant NBR (-20℃ to 80℃) / Optional FKM (-10℃ to 150℃)
- Body material: Reinforced PBT with UL94 V-0 flame rating
- Protection class: IP67 (dustproof & temporary immersion)
- Electrical connection: DIN43650 Form A with flying lead option
- Weight: 85g ±2g (excluding connector)
- Dimensions: 38mm(W) × 25mm(H) × 58mm(L) (port axis direction)
- Mounting: Direct piping (no manifold required) with G1/8 or NPT1/8 adaptor option
Ultra-compact 5/2-way valve engineered for high-density pneumatic systems requiring rapid cycling. Features dual-chamber diaphragm structure for improved response stability under variable loads. The copper-free aluminum solenoid coil ensures compatibility with cleanroom environments. Requires 5μm filtration with oil mist lubrication (ISO VG32 recommended).
- PCB handling robots for semiconductor manufacturing
- Multi-axis pneumatic gripper control systems
- Portable analytical instruments requiring miniaturized pneumatics
- Automated pipetting systems in biotech labs
- High-cycle textile machinery actuators
Installation protocol:
For vertical mounting (recommended orientation), maintain minimum 15mm clearance
between adjacent valves. Apply thread sealant only on male ports, avoiding
contamination of diaphragm area. Perform 50-100 test cycles before critical operation.
