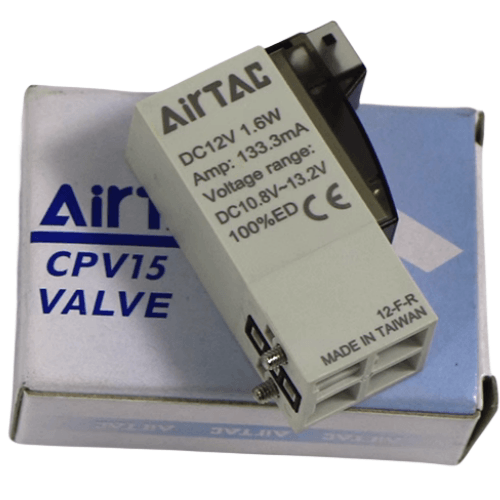

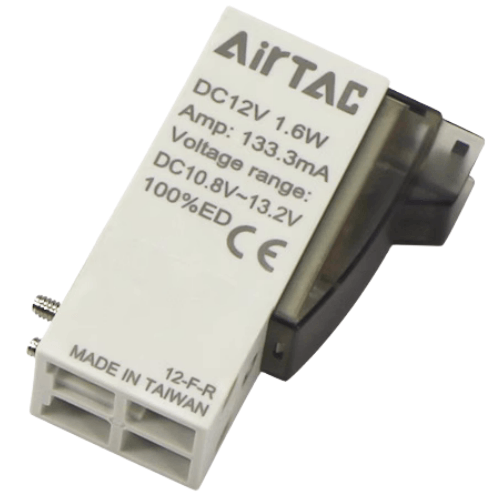

Airtac CPV15-E-F-R-C-B-A Miniature Solenoid Valve CPV15FR
2. Low activation voltage ensures extended service life.
3. Hum-free operation with AC power supply eliminates buzzing noise issues.
4. Integrated surge suppression protects the solenoid valve from voltage spike damage.
Category: Miniature Solenoid Valves | Brand: AIRTAC | Series: CPV15-E-F-R-C-B-A
AirTAC CPV15-E-F-R-C-B-A Micro Solenoid Valve Technical Details
- Full model code: CPV15-E-F-R-C-B-A (Commercial variant: CPV15FR)
- Valve type: 3/2-way direct acting, normally closed
- Port configuration: Rc1/8 (G1/8 optional)
- Effective sectional area: 1.8mm² (Cv≈0.07)
- Operating pressure range: 0.05–0.7 MPa

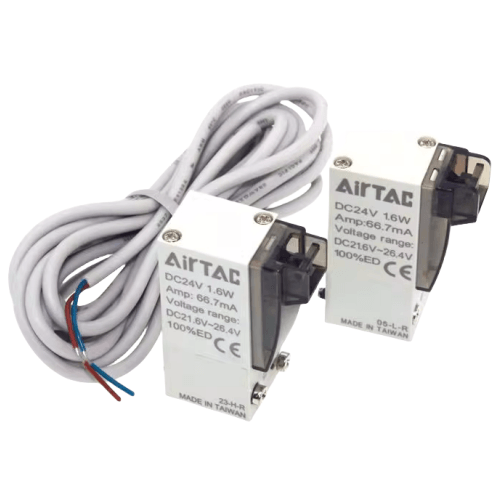

- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Ambient temperature: -5℃ to 60℃ (no freezing)
- Fluid temperature: 0-60℃
- Seal material: Heat-resistant NBR (HNBR)
- Body material: Aluminum alloy (anodized)
- Protection rating: IP67 (coil), IP40 (valve body)
- Weight: 98g ±3g (excluding accessories)
- Dimensions: 42mm(L) × 25mm(W) × 36mm(H) (port axis direction as length)
- Mounting orientation: Any (horizontal recommended for condensate management)
Ultra-compact electromagnetic valve engineered for space-constrained pneumatic systems requiring high cycling frequency (up to 10Hz). Features zero-pressure start capability and manual override button for system debugging. The copper-free aluminum construction meets RoHS2.0 standards, with integrated surge protection diodes in DC models.
- Robotic end-effector tooling (grippers, suction cups)
- Dental chair pneumatic adjustments
- IVD analyzer reagent dispensing systems
- Semiconductor wafer handling equipment
- Mobile battery-powered automation devices
Installation guidelines:
Use M3 mounting screws with vibration-proof washers. Maintain minimum 5mm
clearance from heat sources. For vertical installation, orient exhaust port
downward to prevent moisture accumulation. Requires 5μm filtration (40μm for
exhaust).
| Property | Property Value |
|---|---|
| sku | CPV15FR |
| Standard Voltage | DC12V |
| Valve Body Width | <15mm> |
