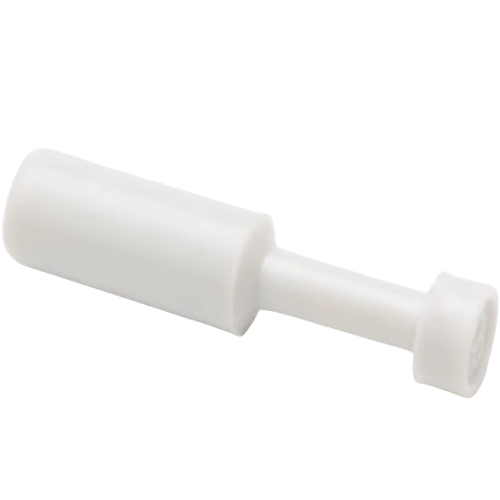

Airtac PP Pipe Plug PP30
AirTAC PP Tube Plug PP30 Technical Details
- Model: PP30 (Polypropylene Series)
- Material: Glass fiber reinforced PP (30% GF)
- Thread standard: Metric coarse thread (M30×1.5)
- Seal type: Integrated O-ring groove design
- Pressure rating: 0.3-1.0 MPa (static pressure)
- Temperature range: -30℃ to +100℃ (continuous use)
- Chemical resistance: Resists acids, alkalis, and most hydraulic fluids
- Surface finish: Ra 3.2μm (molded surface)
- Installation torque: 8-12 N·m (dry fit)
- Weight: 18.5±0.7g
- Dimensions: 30mm(Ø) × 21.5mm(H) (nominal)
- Color code: Natural PP white (RAL 9010 equivalent)
Heavy-duty sealing plug with dual-stage leak prevention system, featuring integrated radial compression ribs and axial sealing surface. The cross-shaped drive pattern enables tool-assisted installation while preventing overtightening. UV-stabilized formulation ensures outdoor durability.
- Pneumatic manifold port blanking
- Hydraulic test point protection
- CNC machine coolant line maintenance
- Solar thermal system drain port sealing
- Food processing equipment sanitization ports
Installation protocol:
Apply silicone-free lubricant on threads before installation.
Engage threads hand-tight before applying final torque with
PP30-specific installation tool (ATC-TL7892). Do not exceed
15N·m even with thread seal tape.
| Property | Property Value |
|---|---|
| sku | PP30 |
