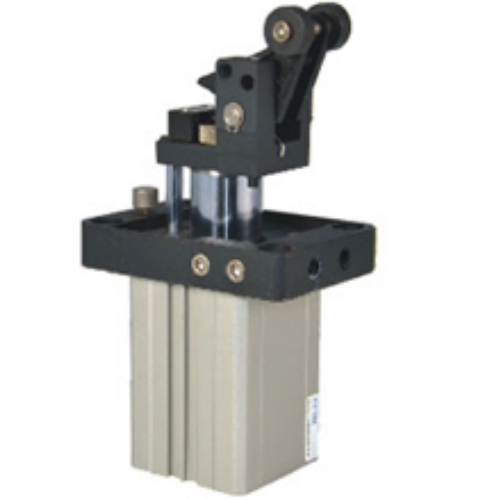

Airtac TWM Stopper Cylinder TWM50X30-K
2、Thickened piston rod design significantly enhances cylinder impact resistance;
3、Heavy-duty stop cylinders integrate oil cushions or adjustable hydraulic cushioning for reliable impact energy absorption;
4、Lever-type roller mechanism features self-locking device to prevent arm rebound and secondary pushing of blocked objects;
5、Multiple series and configurations available for customized selection.
Category: Stop Cylinders , Brand: AirTAC , Series: TWM
AirTAC TWM Series Stopper Cylinder TWM50X30-K Technical Details
- Model: TWM50X30-K
- Type: Double-acting linear stopper cylinder
- Bore size: Ø50mm
- Stroke: 30mm (adjustable)
- Operating pressure: 0.05–1.0 MPa
- Operation method: Pneumatic (air pressure)
- Cushioning type: Rubber buffer + adjustable hydraulic absorber
- Port size: G1/8 (NPT1/8 optional)
- Mounting style: Standard base mounting with M6×1.0 threaded holes
- Rod material: Hard chrome-plated steel (S45C)
- Cylinder tube: Aluminum alloy (anodized surface)
- Operating temperature: -20℃ to 80℃
- Weight: 1.85kg ±3%
- Dimensions: 180mm(L) × 60mm(W) × 60mm(H)
- Rod end type: Male M10×1.25 thread
- Seal material: NBR (Nitrile rubber)
- Repeat positioning accuracy: ±0.2mm
High-precision stopper cylinder with dual-stage shock absorption system, featuring wear-resistant chromium plating and anti-rotation mechanism. The TWM50X30-K incorporates a through-rod design for balanced force distribution and integrated mounting grooves for sensor installation. Requires ISO 8573-1:2010 [3:4:3] class compressed air.
- Automated assembly line workpiece positioning
- Pallet stop mechanisms in conveyor systems
- Precision fixturing for CNC machine loading/unloading
- Robotic arm end effector positioning locks
- Packaging machine product counting stations
Installation guidelines:
Maintain 0.5-1mm clearance between stopper face and target surface.
Lubricate with ISO VG32 hydraulic oil during initial setup.
Maximum side load capacity: 150N at full extension.
| Property | Property Value |
|---|---|
| sku | TWM50X30-K |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | Non-magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Non Self-locking |
| Stroke | 30mm |
