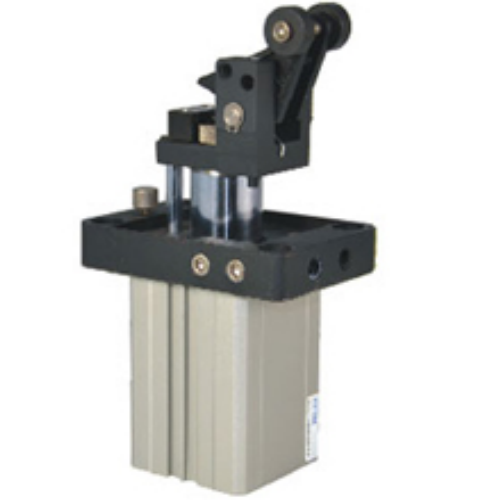

Airtac TWM Stopper Cylinder TWM50X30-K-F
2、Thickened piston rod design significantly enhances cylinder impact resistance;
3、Heavy-duty stop cylinders integrate oil cushions or adjustable hydraulic cushioning for reliable impact energy absorption;
4、Lever-type roller mechanism features self-locking device to prevent arm rebound and secondary pushing of blocked objects;
5、Multiple series and configurations available for customized selection.
Category: Stop Cylinders , Brand: AirTAC , Series: TWM
AirTAC TWM50X30-K-F Stopper Cylinder Technical Specifications
- Model: TWM50X30-K-F
- Type: Double-acting mechanical stopper cylinder
- Bore size: Ø50mm ±0.1mm tolerance
- Stroke: 30mm (adjustable ±2mm)
- Operating pressure: 0.1-0.8 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable pneumatic cushion (3-stage)
- Mounting: Front flange with ISO 6432 pattern
- Port size: M5x0.8 (1/8" NPT optional)
- Rod material: Chrome-plated steel (3-5μm coating)
- Tube material: Aluminum alloy (anodized surface)
- Seal material: HNBR/NBR (FDA compliant options available)
- Weight: 1.2kg ±50g (without accessories)
- Dimensions: 180mm(L) × 50mm(W) × 50mm(H)
- Repeat accuracy: ±0.2mm
- Max thrust: 157N @0.5MPa
- Protection rating: IP54 (standard), IP67 (optional)
High-precision stopping cylinder with integrated mechanical lock mechanism, featuring dual anti-rotation guides for positional stability. The TWM series incorporates a wear-compensation system that automatically adjusts for seal degradation, maintaining consistent stopping force through 1M+ cycles. Optimized for high-cycle applications with 0.1mm resolution magnetic sensor compatibility.
- Precision workpiece positioning in CNC pallet systems
- Vertical load locking in automated assembly lines
- Safety braking for linear actuators in material handling
- Tooling plate fixation in semiconductor wafer processing
- Overload protection in press machine operations
Installation protocol:
Requires perpendicular mounting surface with flatness ≤0.05mm.
Lubricate with ISO VG32 pneumatic oil through integrated grease nipple
every 50,000 cycles. Avoid side-load forces exceeding 20N.
- Standard seals: 500,000 cycles @0.5MPa
- High-duty seals: 1.2M cycles @0.5MPa
- Regreasing interval: Every 3 months or 2000km travel
| Property | Property Value |
|---|---|
| sku | TWM50X30-K-F |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | Non-magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Self-locking |
| Stroke | 30mm |
