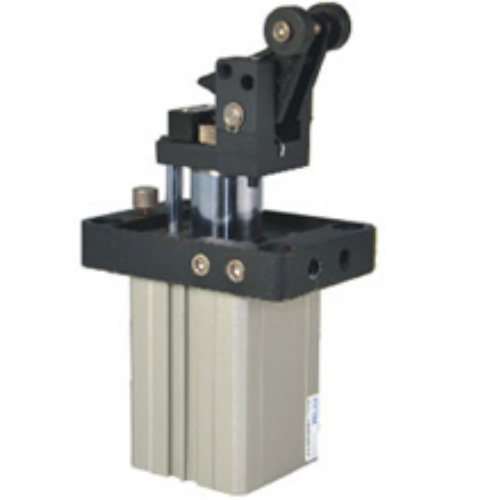

Airtac TWM Stopper Cylinder TWM50X30-S-K
2、Thickened piston rod design significantly enhances cylinder impact resistance;
3、Heavy-duty stop cylinders integrate oil cushions or adjustable hydraulic cushioning for reliable impact energy absorption;
4、Lever-type roller mechanism features self-locking device to prevent arm rebound and secondary pushing of blocked objects;
5、Multiple series and configurations available for customized selection.
Category: Stop Cylinders , Brand: AirTAC , Series: TWM
AirTAC TWM50X30-S-K Blocking Cylinder Specifications
- Model: TWM50X30-S-K
- Type: Double-acting compact blocking cylinder
- Bore size: Ø50 mm
- Stroke: 30 mm
- Operating pressure: 0.05–0.9 MPa
- Cushioning: Adjustable rubber buffer (both ends)
- Mounting style: Basic fixed type (MF1)
- Port size: Rc1/8 (G1/8 optional)
- Temperature range: -10℃ to 80℃
- Rod material: Stainless steel (SUS304)
- Cylinder body: Aluminum alloy (hard anodized)
- Weight: 2.8 kg (with standard accessories)
- Dimensions: 200mm(L) × 50mm(W) × 50mm(H)
- Piston seal: NBR + PU combination
- Protection class: IP54 (standard), IP67 (optional)
High-precision blocking cylinder with integrated mechanical locking mechanism, designed for precision positioning and load holding in automated systems. Features wear-resistant chromium-plated rod and anti-rotation guide structure for stable operation. Requires ISO 8573-1:2010 [3:4:3] class compressed air.
- Conveyor line workpiece positioning
- Robotic welding fixture locking
- CNC machine tool safety interlocks
- Automated assembly station part retention
- Pallet transfer system braking
Installation note:
Ensure proper alignment of guide rails during mounting. Lubricate with ISO VG32 hydraulic oil
before initial operation. Maximum side load capacity: 150N at mid-stroke position.
| Property | Property Value |
|---|---|
| sku | TWM50X30-S-K |
| Port Size | PT1/8 |
| Proximity Sensor Thread Type | M8×1.0 |
| Magnet | S-Magnetic |
| Bore Diameter | <50mm> |
| Self-locking Function | Non Self-locking |
| Stroke | 30mm |
