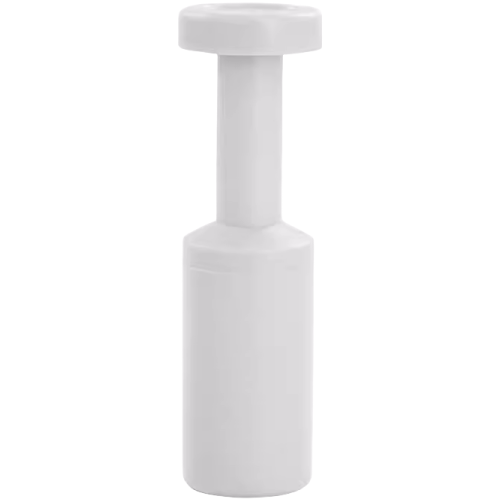

Airtac X-APP Fitting - Plug X-APP10
$2.75
Regular price
$10.25
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APP10
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APP10 Tube Fitting Plug Specifications
- Model: X-APP10
- Type: Pneumatic tube plug (push-to-connect)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) rubber
- Thread type: Metric (M5×0.8) or BSPP (G1/8) optional
- Operating pressure: 0.1–1.0 MPa
- Temperature range: -20℃ to 80℃
- Tube compatibility: Φ4mm, Φ6mm, Φ8mm, Φ10mm (selectable)
- Insertion force: ≤25N (with proper tube preparation)
- Weight: 12g ±0.5g
- Dimensions: 15mm (Ø) × 20mm (L)
- Surface hardness: HV200-250
- Vibration resistance: 10-2000Hz, 5G acceleration
High-sealing plug for pneumatic systems featuring one-touch installation and anti-vibration design. The 360° rotatable collar allows tool-free tube release while maintaining positive sealing under pressure fluctuations. Compatible with ISO 8434-1 standard tubing.
Typical Applications:
- Blocking unused ports in pneumatic manifolds
- Pneumatic circuit maintenance isolation
- Test point sealing in air preparation units
- Modular automation equipment interfaces
- Robotic end-effector air line termination
Installation protocol:
Cut tube ends square (max 0.5° angle tolerance), deburr thoroughly,
and insert until audible "click". For M5 threaded version,
apply 0.8-1.2N·m torque using anti-seize compound.
Maintenance:
Replace every 5 years or 500,000 pressure cycles.
Inspect for brass oxidation if used with halogen-containing air.
| Property | Property Value |
|---|---|
| sku | X-APP10 |
